89
Appendix B: WLAN Application Gateway 2246
Configuring the OAI Box
1 Select OAI Box Configuration from the NetLink OAI System menu.
The OAI Box Configuration screen appears (see Figure 21 on page 89 ).

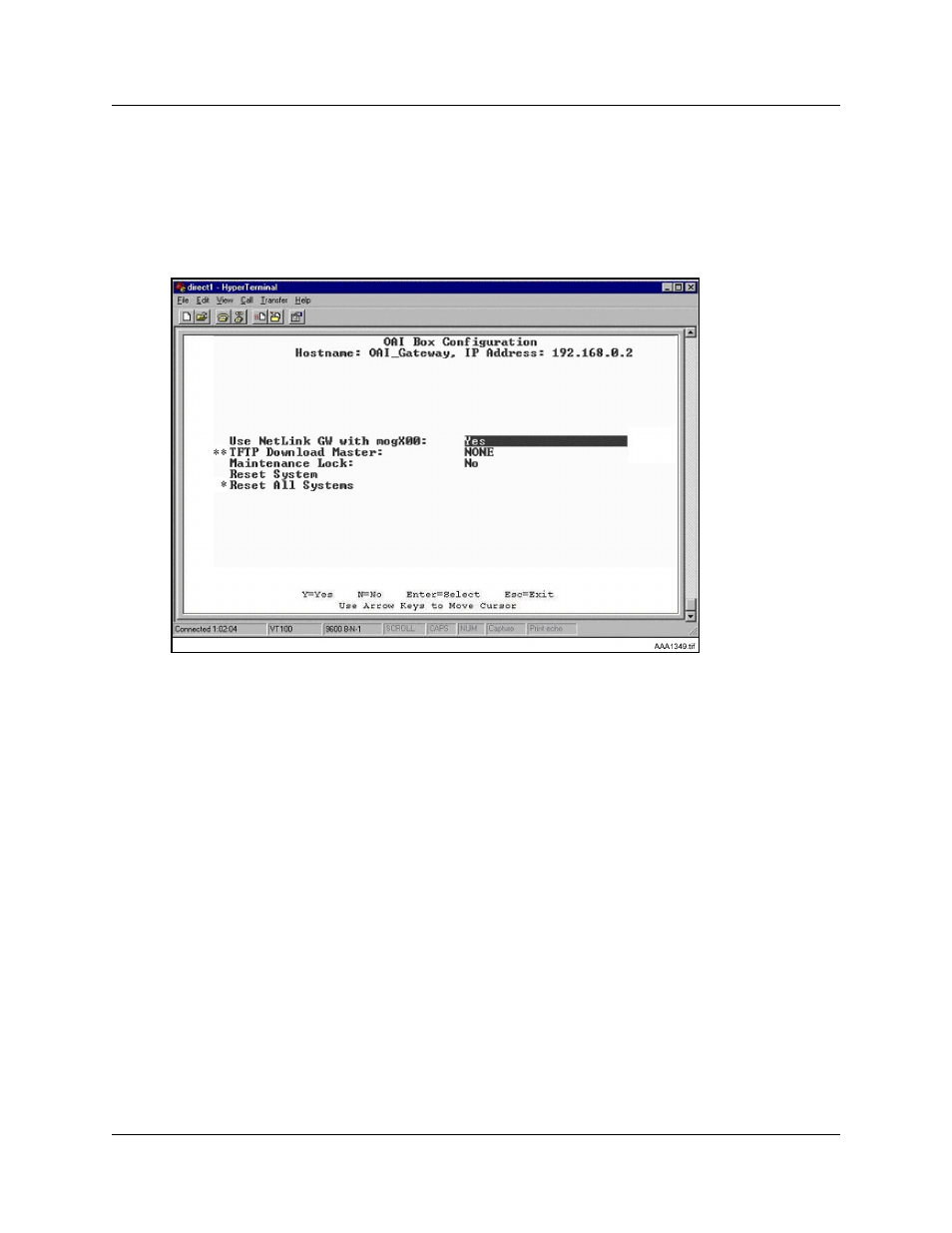

Figure 21 OAI Box Configuration screen
Note 1: ** – Option appears only on the MOG6xx model.
Note 2: * – This option does not appear unless “Use NetLink GW with mogX00” is set to
“Yes”, as it is in this screen, which is the default.
2 Configure the following fields with information provided by the network administrator:
• Use NetLink GW with mogX00 – change this option to No.
• TFTP Download Master – enter the IP address of the TFTP Server.
• Maintenance Lock – the system sets this option to Yes after maintenance activities have
been performed that require a reset. This option cannot be changed. It is automatically set.
Reset the system at exit to clear Maintenance Lock. Maintenance Lock prevents any new
calls from starting.
• Reset System – if this option is set to Yes, the WLAN Application Gateway 2246 is reset
after pressing ENTER.
• Reset All Systems – not applicable.
3 Press Esc on the keyboard to return to the NetLink OAI System menu.
