30
Overview

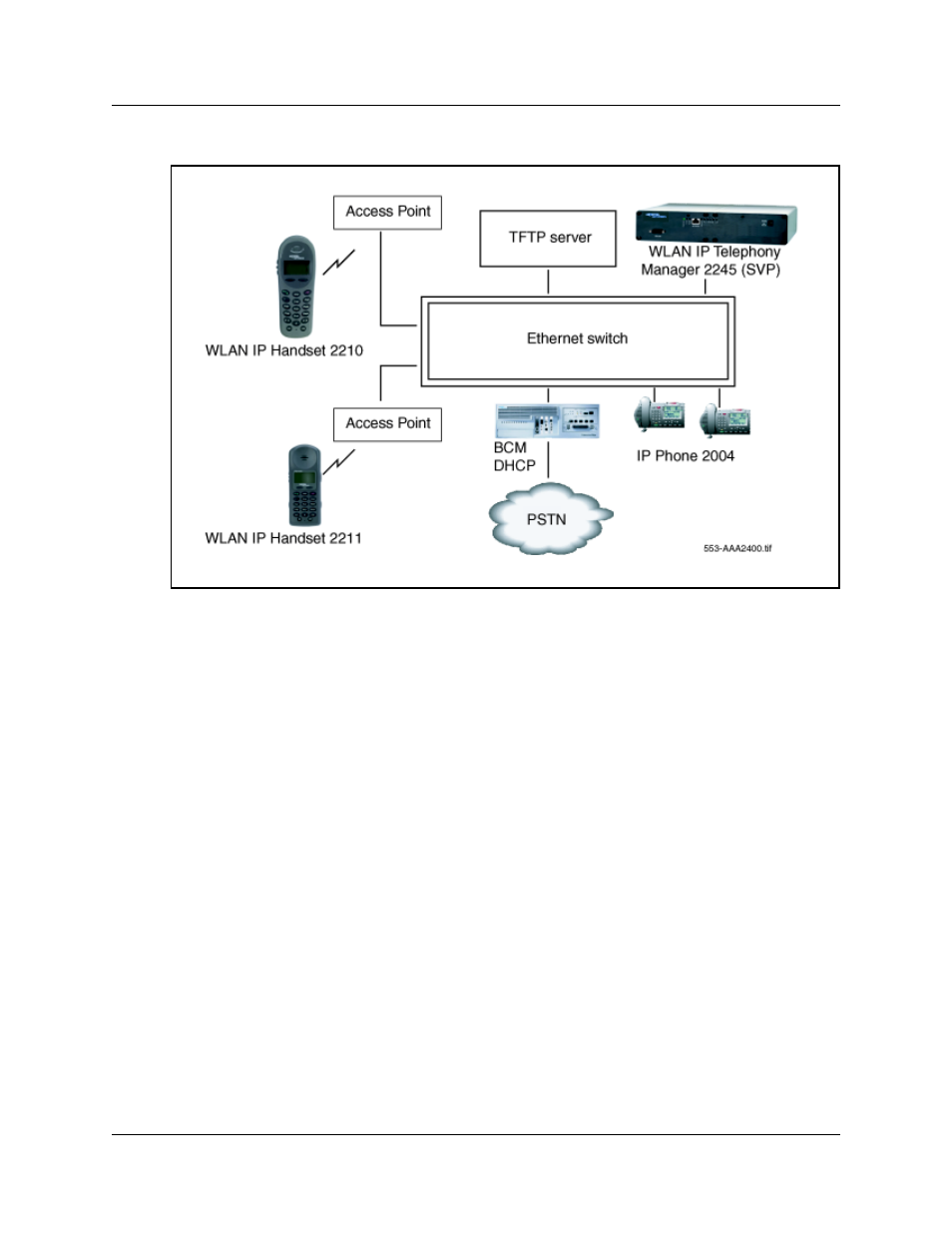

Figure 1 Basic network configuration
The basic WLAN IP Telephony network consists of the following components:
•
BCM (call server)
• TFTP Server (optional)
• DHCP Server (optional)
• WLAN IP Telephony Manager 2245
• WLAN Handset 2210/2211
• Access Point (AP)
BCM
To support the WLAN Handsets 2210/2211, the BCM system must run Release 3.6.1 (patch) or
later software versions. BCM systems with 3.6 or earlier software versions must be upgraded to
support the handsets.
TFTP Server
A TFTP Server distributes firmware to the WLAN Handsets 2210/2211 and WLAN IP Telephony
Manager 2245. It can reside on a different subnet than the BCM and APs. The TFTP Server can be
located on either side of the firewall.
