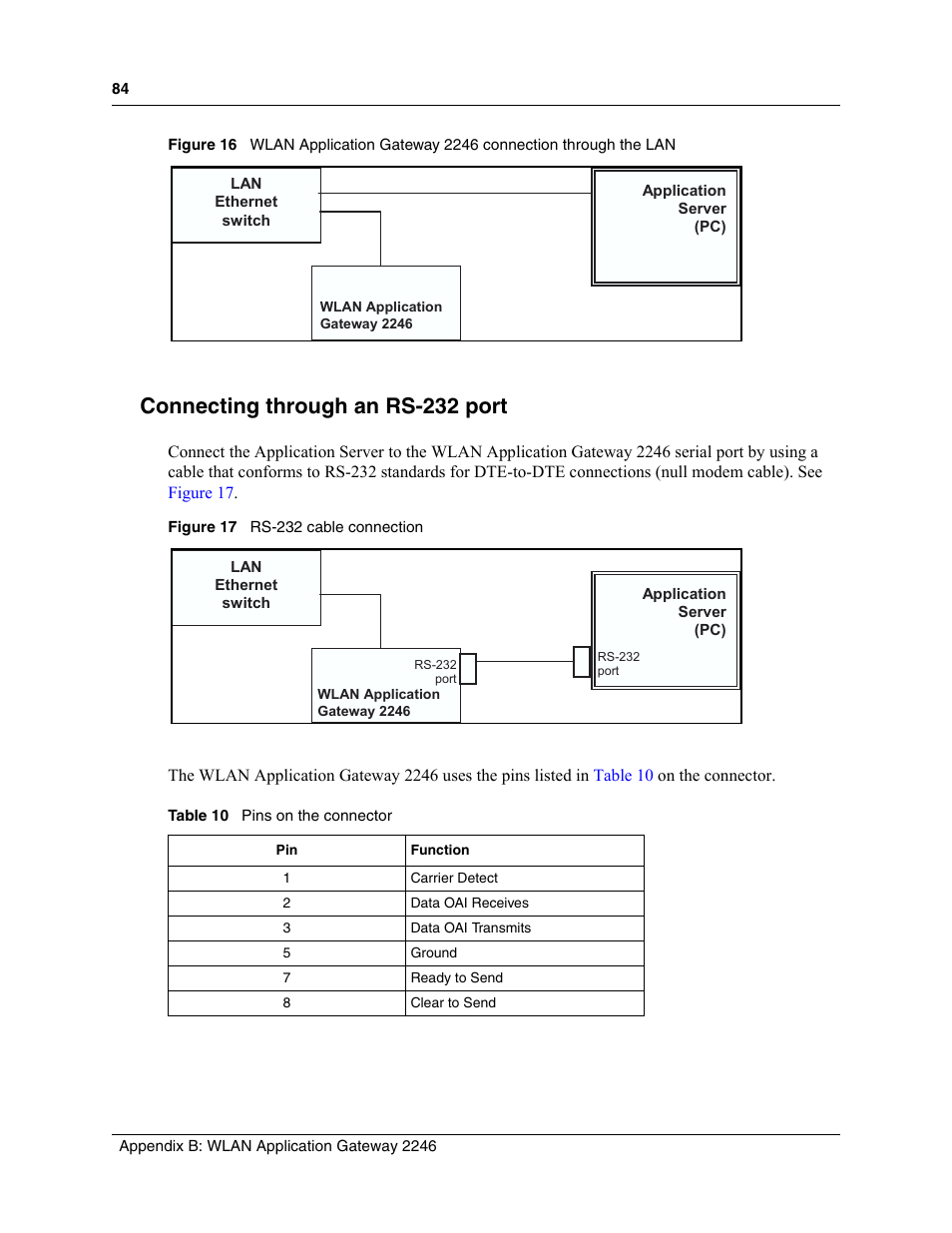

Connecting through an rs-232 port, Figure 16, Figure 17 – Nortel Networks MOG6xx User Manual
Page 84: Rs-232 cable connection, Table 10, Pins on the connector
