NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
3

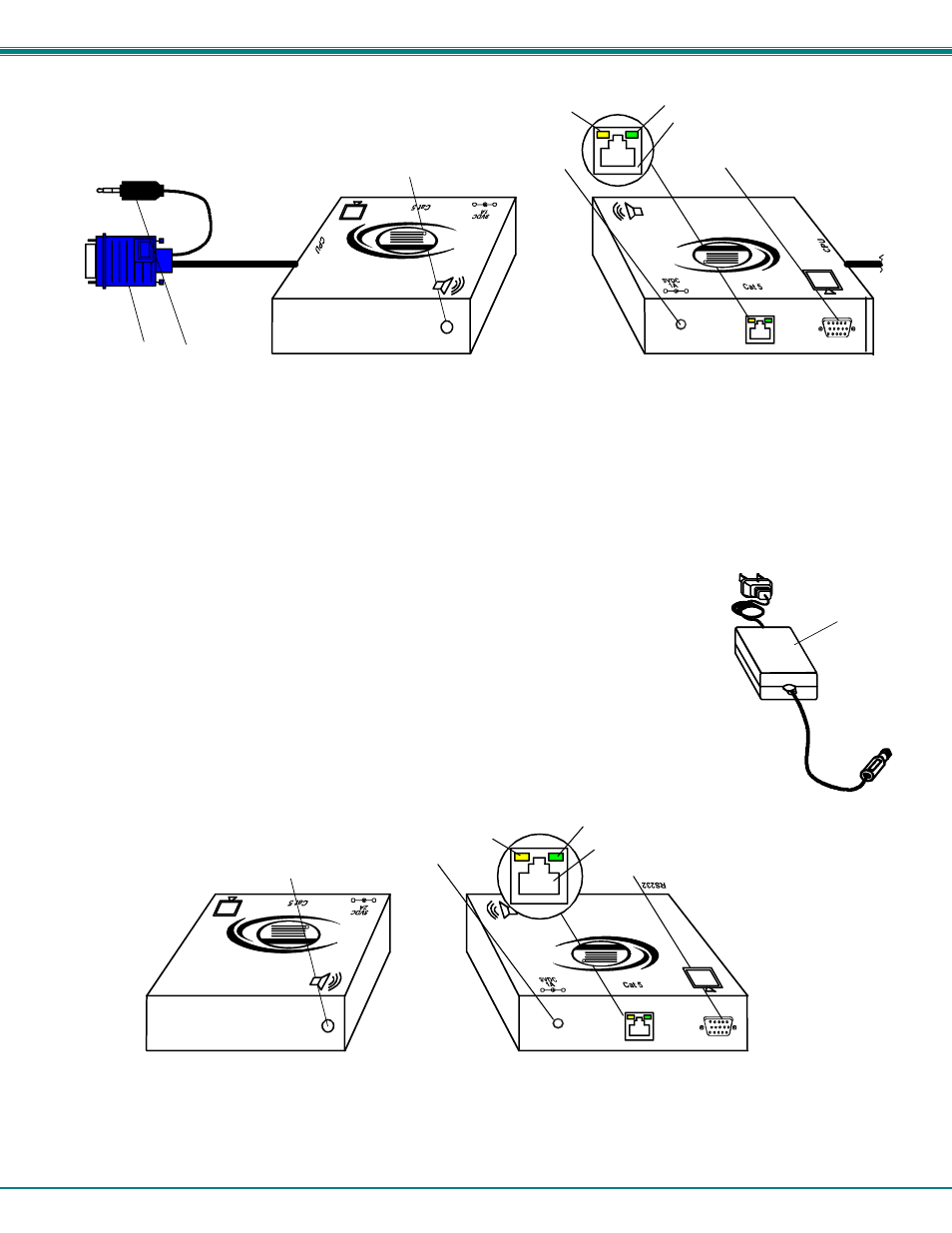

XTENDEX Features and Functions
1.
Green LED
- power indicator- illuminates when power has been supplied to the unit
2.
Yellow LED-
communication
indicator- blinks when there is valid communication between the local and remote units
3.
Cat 5
- RJ45 female- for connecting the CAT 5 cable
4.
Video Connector
- 15HD female- for connecting the local user's monitor
5.
Audio Jack
- 3.5mm stereo audio jack- for connecting to local speakers
6.
Video Connector
- blue 15HD male- for connecting to the video port on the CPU or KVM switch
7.
Audio Plug
- 3.5mm stereo audio plug- for connecting to CPU audio line out
8.
Audio Jack
- 3.5mm stereo audio jack- for connecting to remote speakers
9.
9VDC- 1.0A
- connection jack for the AC adapter
10.
Video Connector
- 15HD female- for connecting the remote user's monitor
11.
AC Adapter
- to power the Remote and Local Units (1 for each required)
6
7
1
3
ST-C5VA-600 Local Unit (VGA plus Audio)
2
4
5
NTI
R
Network Technologies Inc
XTENDEX
-
+
NTI
R
Netw
ork
Tech
no
lo
gie
s I
nc
XT
ENDE
X
-
+
9
(Front View)
(Rear View)
(not included)
9 VDC
AC
ADAPTER
11
10
ST-C5VA-600 Remote Unit (VGA plus Audio)
8
1
3
2
9
-
+
NTI
R
Network Technologies Inc
XTENDEX
NTI
R
Netw
ork
Tech
no
lo
gie
s I
nc
XT
ENDE
X
-
+
(Front View)
(Rear View)
(not included)
