NTI VEEMUX AUDIO/VIDEO MATRIX SWITCH VIA CAT5
9
Note: This total length of CAT5 cable between the ST-C5VA-600 Remote and Local units cannot exceed 600 feet. (See
Fig. 9)

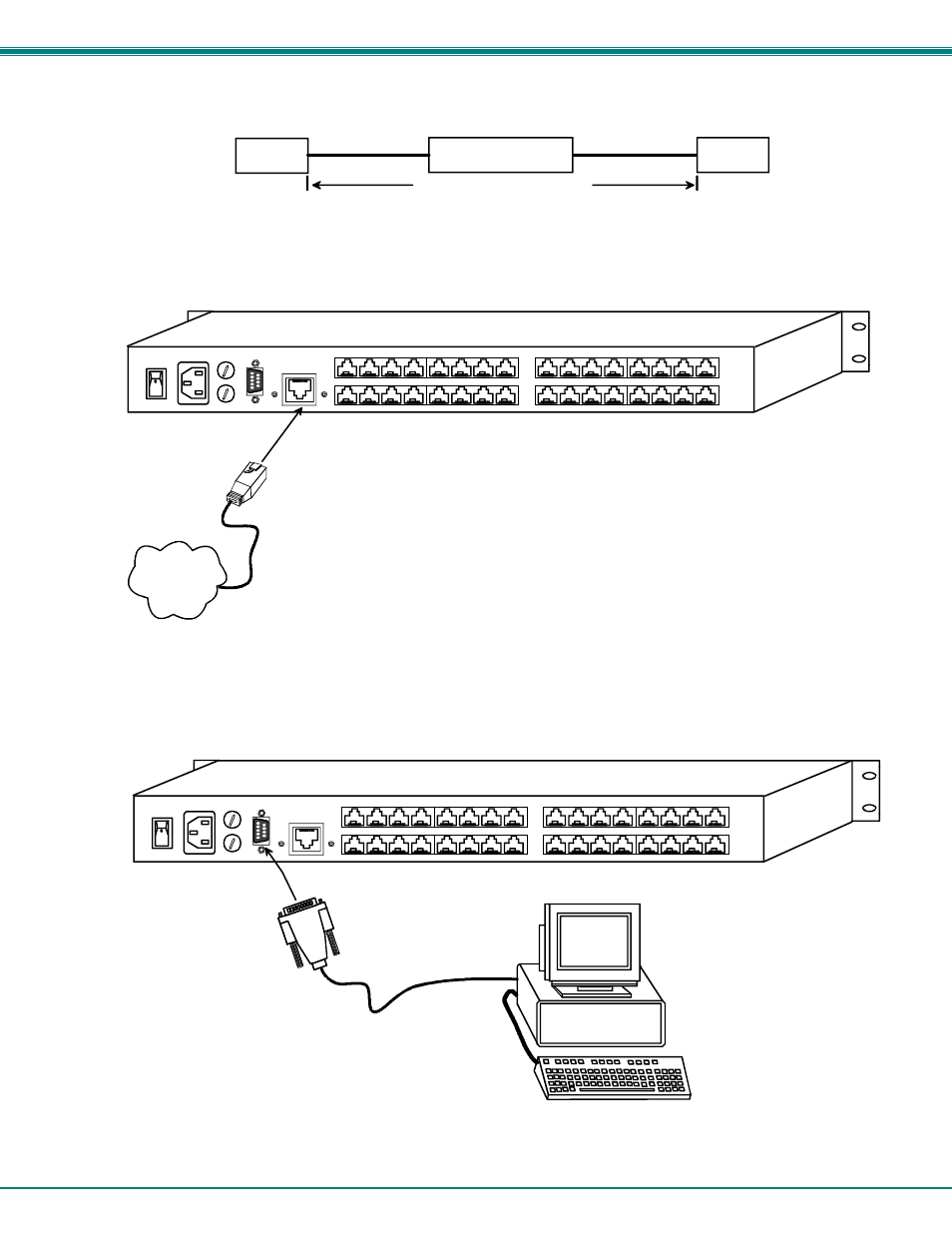

Figure 7- Maximum total CAT5 cable length cannot exceed 600 feet
6. To use the WEB Interface (page 20) , connect a CAT5 cable between the Local Network and the RJ45 connector on the
VEEMUX labeled ETHERNET. (See Fig. 8) This cable should be wired straight through between two RJ45 connectors (pin 1
to pin 1, etc.)
Figure 8- Connect VEEMUX to LAN
7. For direct connection of a user terminal, connect a male-to-female DB9 cable from a serial port on the terminal to the DB9
female connector on the VEEMUX. The cable should be wired straight through (pin 1 to pin 1, etc. ) (See Fig. 9) The user
terminal will control the VEEMUX via the RS232 interface (page 14). See page 32 for cable pinouts for PS/2, SUN, and MAC
terminal connections.
Figure 9- Connect user terminal to VEEMUX
