Chapter 2

Function Generator Operation

©

National Instruments Corporation

2-5

NI 5401 User Manual

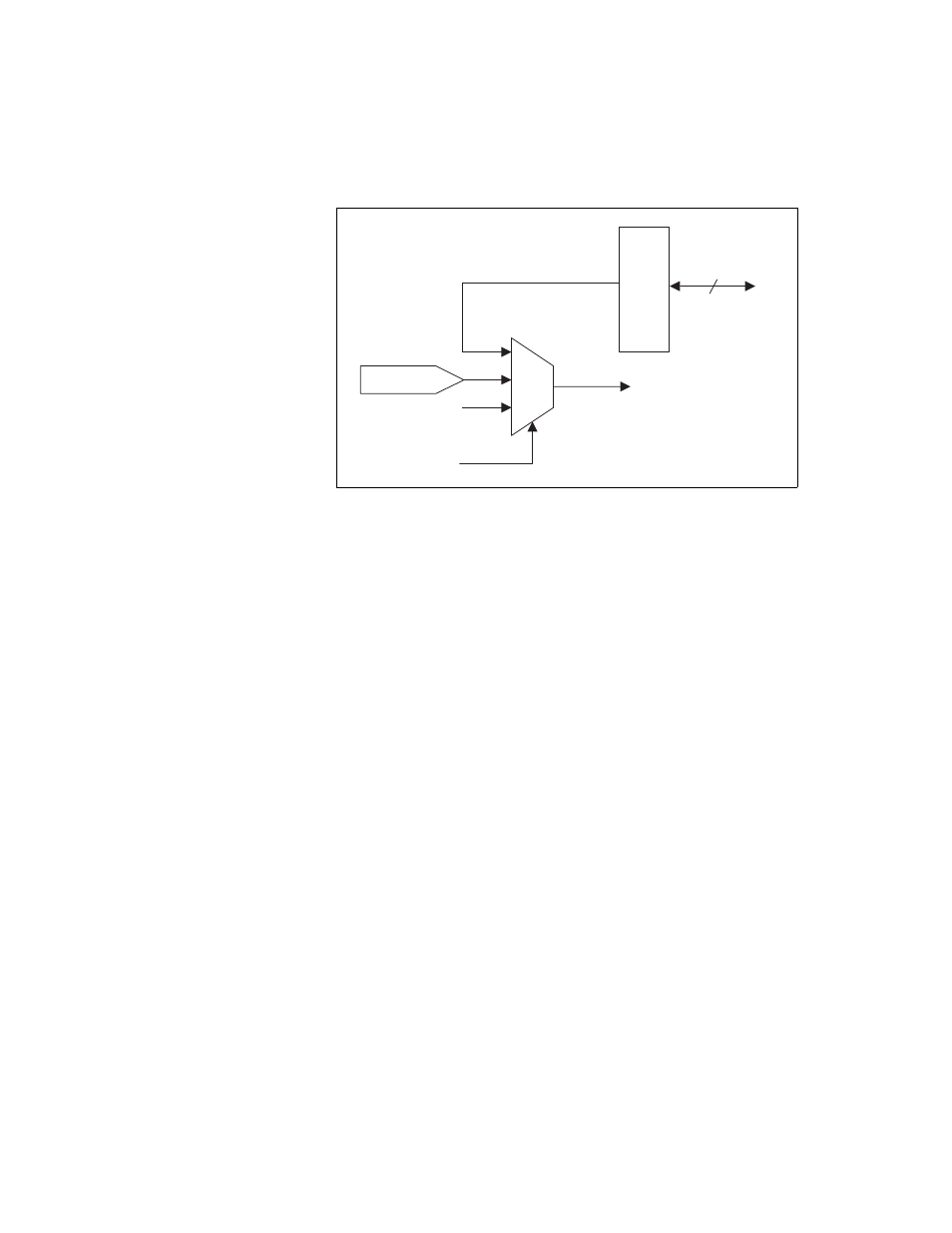

Figure 2-4. Waveform Generation Trigger Sources

If you need to automatically trigger the waveform generation, use software
to generate the triggers. A rising TTL edge is required for external
triggering. For more information on triggering over RTSI lines, see the

RTSI/PXI Trigger Lines

section later in this chapter.

Modes of Operation

The NI 5401 has three triggering modes—single, continuous, and
stepped—described in the following sections.

Single Trigger Mode

The waveform you define in the staging list is generated only once by going
through the entire staging list. Only one trigger is required to start the
waveform generation.

In single trigger mode, after the NI 5401 receives a trigger, the waveform
generation starts at the first stage and continues through the last stage. The
last stage is generated repeatedly until you stop the waveform generation.
Figure 2-5 illustrates a single trigger mode of operation.

Software Trigger

RTSI/PXI Trigger

RTSI/PXI Trigger
Lines <0..6>

RTSI Switch

Trigger Select

Start Trigger

External Trigger

7

Digital

MUX
