GPS Reception

The ICN 620 relies on the reception of signals transmitted by the Global Positioning System satellites orbiting the earth.
This display shows a visual representation of how many satellites the iCN 620 unit is receiving information from.

Latitude and longitude are displayed along with a North-pointing compass, the heading in degrees and ground speed.
You can view the Latitude/Longitude values either in degrees, minutes and seconds, or in decimal. Refer to Section 12
Modifying the Settings – GPS Settings for more information.
The 12 satellites that could be viewed from your current position are shown as segments.
The satellites are represented as follows:
• A yellow segment indicates a satellite that is being tracked but is not being used to determine your position.

• A red segment indicates a satellite that is being used to determine a two dimensional (2D) fi x.

• A green segment indicates a satellite that is used to determine your position.

The circle underneath the segment display is green when there is a valid fi x (2D or 3D), and red when there is no fi x
available. While a 2D fi x is suffi cient to maintain a valid fi x, a 3D fi x is more accurate.

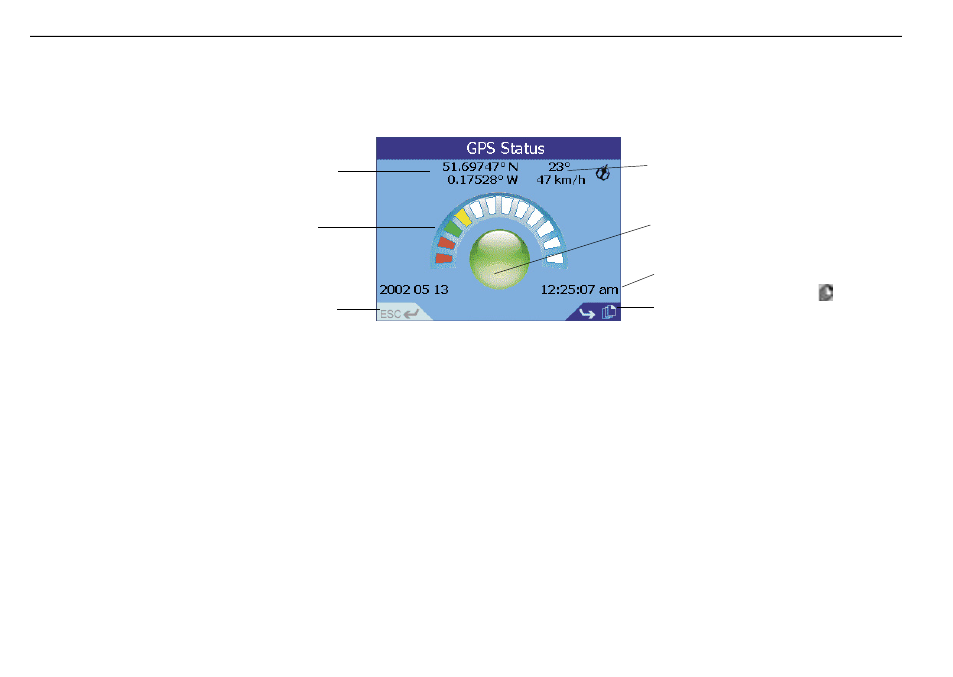

Latitude and longitude of

current position.

Each segment represents a

satellite

Select ESC or press ESC

to return to the previous

screen

Current heading
in degrees and
ground speed

A green circle means
the unit has a valid fi x

Local time

Select Page Fwd or press
to view the next GPS status
screen of settings.
