31 NAVMAN iCN 620 user manual

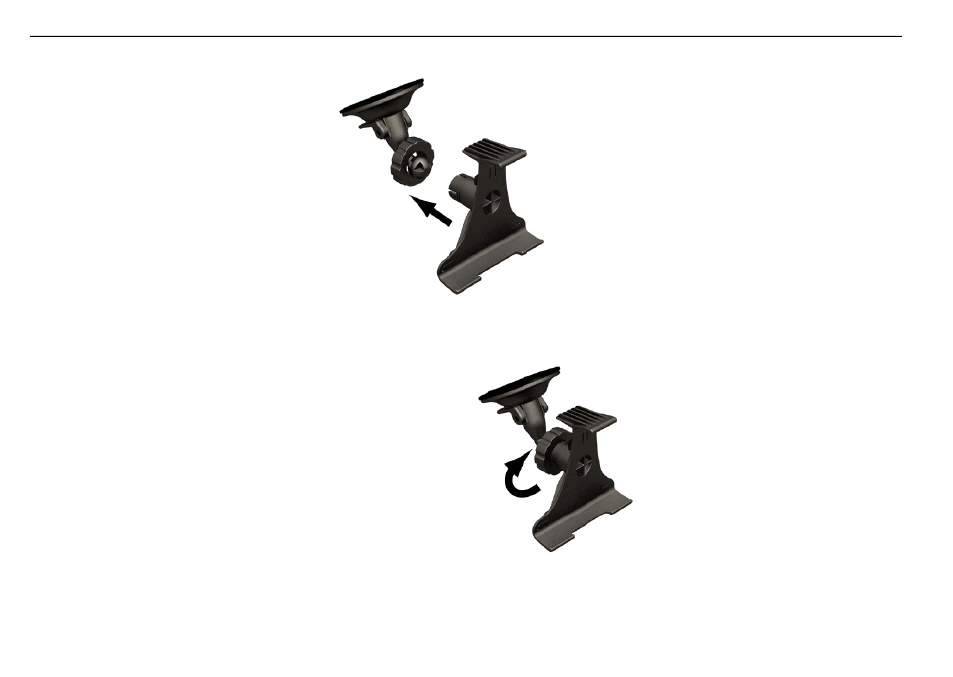

Make sure the short
side of the socket clip is
on top.
Push the socket clip
onto the ball until it
clicks.
Wind locking nut
onto thread
6 Snap the socket clip onto the ball foot.
7 Adjust the position of the socket clip, so that the unit will be clearly visible by the driver.
8 Wind the locking nut onto the thread of the socket clip until firm.
9 Snap the iCN 620 unit onto the socket clip. First, position the two locating tabs on the underside of the unit into
the corresponding slots on the socket clip. Then snap the upper side of the unit into the clip.
