34 NAVMAN iCN 620 user manual

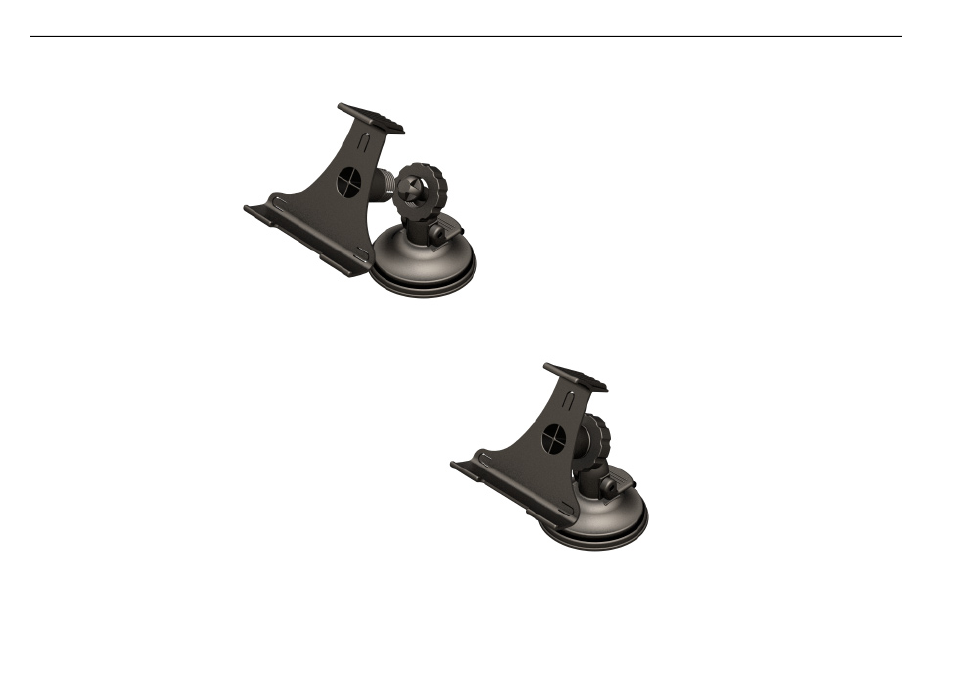

Wind locking nut
onto thread
Make sure the
short side of the
socket clip is on
top
Push the socket
clip onto the ball
until it clicks
7 Snap the socket clip onto the ball foot.
8 Adjust the position of the socket clip, so that the unit will be clearly visible by the driver.
9 Wind the locking nut onto the thread of the socket clip until firm.
10 Snap the iCN 620 unit onto the socket clip. First, position the two locating tabs on the underside of the unit into
the corresponding slots on the socket clip. Then snap the
upper side of the unit into the clip.
To unclip the iCN
620 unit from the
mounting bracket,
press down on the
back of the upper
plastic clip to release
the top of the unit,
then lift the unit out of
the bottom
two slots.
