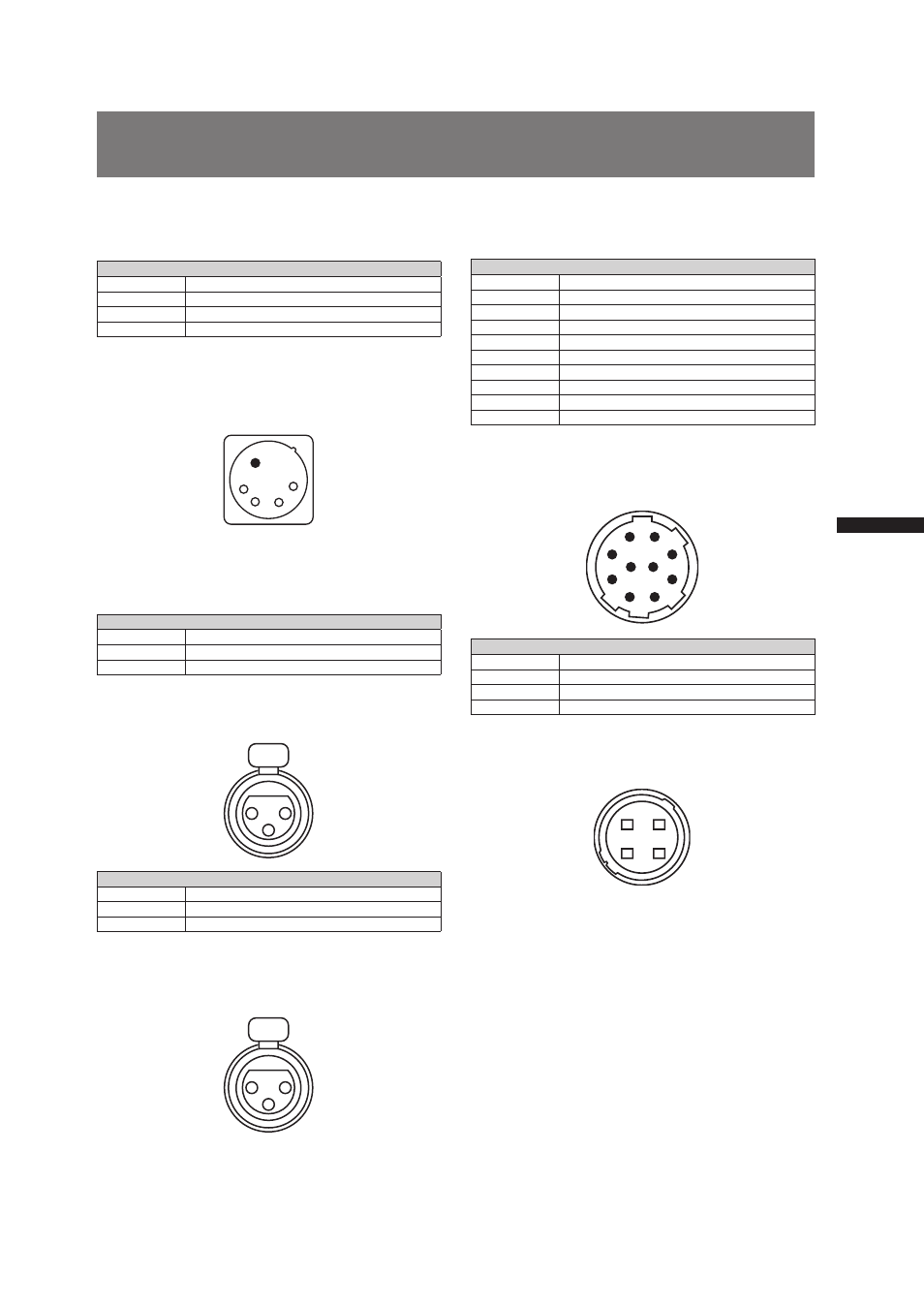

Connector signal description
C
h
ap
te
r 1
0 S
p
ec
ifi
ca
tio
n
s
DC IN
1 GND
2 NC
3 NC
4 +12V
Panasonic Part No. K1AA104H0038
Manufacturer Part No. HA16RX-4P (SW1)
(Hirose Electric Co.)
1
2 3
4
Be sure to use correct polarity when using external
power supplies.
FRONT MIC IN
1 GND
2 AUDIO IN (H)
3 AUDIO IN (C)
Panasonic Part No. K1AB103B0013
Manufacturer Part No. NC3FBH2 (NEUTRIK)
PUSH
1
3
2
AUDIO IN
1 GND
2 AUDIO IN (H)
3 AUDIO IN (C)
Panasonic Part No. K1AB103A0007
Manufacturer Part No. HA16PRM-3SG
(Hirose Electric Co.)
PUSH
1
3
2
Connector signal description
REMOTE
1 CAM DATA (H)
2 CAM DATA (C)
3 CAM CONT (H)
4 CAM CONT (C)
5 R/C ON
6 R/C VIDEO OUT
7 R/C VIDEO GND
8 NC
9 UNREG 12V (max. 0.6 A)
10 GND
Panasonic Part No. K1AY110JA001
Manufacturer Part No. HR10A-7R-6SC(71)
(Hirose Electric Co.)
1
2
4 5
6
7
8
9 10
3
DC OUT
1 GND
2 NC
3 NC
4 +12V OUT (max. 1.5 A)
Panasonic Part No. K1AY104J0001
Manufacturer Part No. HR10A-7R-4SC(73)
(Hirose Electric Co.)
1
2 3
4
