Section 300-Installation Chapter 4. Trunks and Lines
DBS-2.3/9.2-300 DBS Manual - Revised April 2000 4-31
Lines
Extension Connectors
The number of extension ports that can be connected to your system depends
on the type of system you have. Figure 4-13 shows the maximum number of
extensions that can be connected to each system when the extension
expansion connector is used.
Table 4-1 summarizes the number of ports that can be used without the
extension expansion connector. Chapter 6 includes extension maximums for
two-cabinet systems.

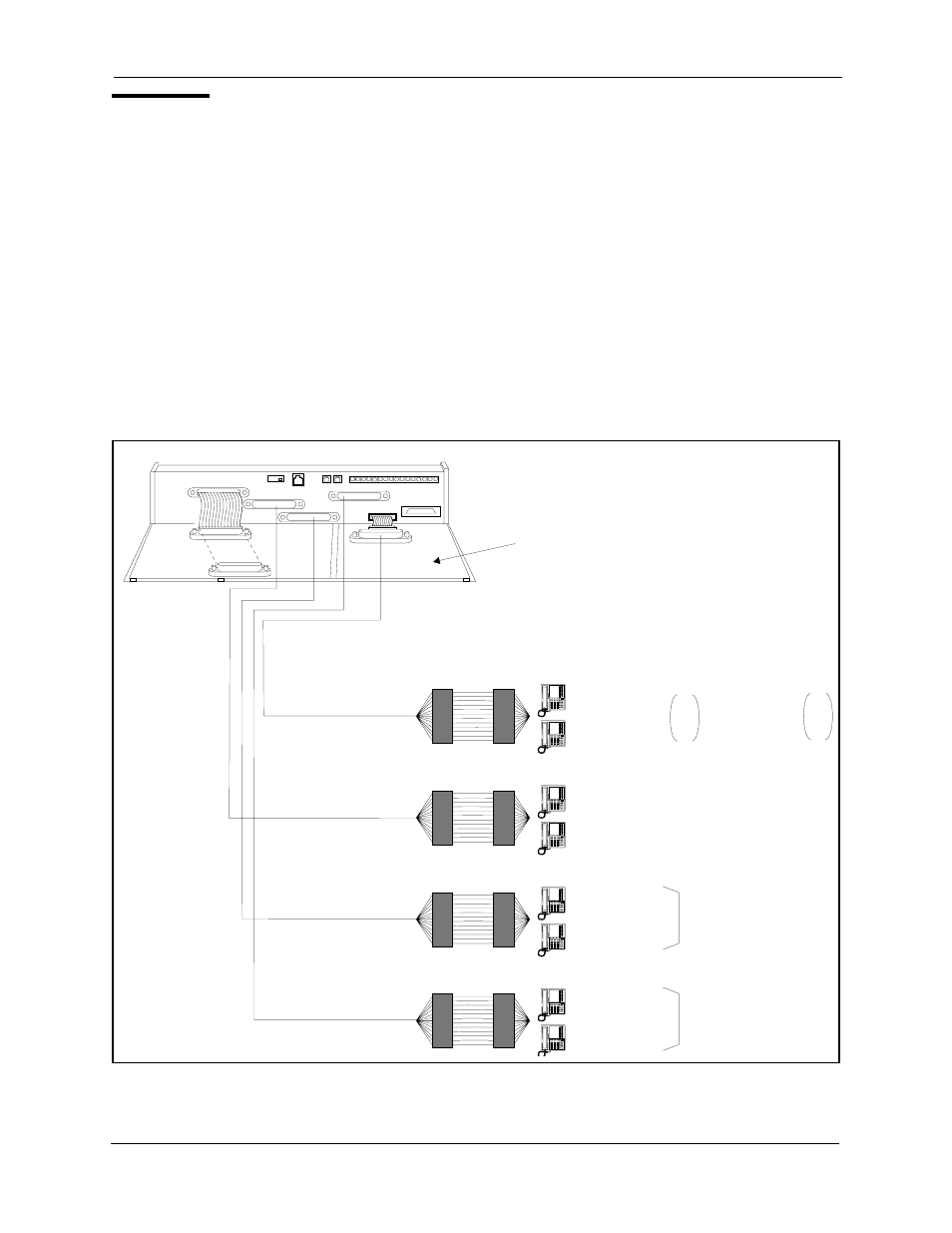

Figure 4-13. DBS extension connections
Extension Ports
25 -32
or
49 -56
Extension Ports
1-24
To
C N 12
To
C N 13
To
C N 14
To C N 1 on the Extension
Expansion C onnector
Extension Expansion C onnector
VB-43121
M D F
Extension Ports
49 -72
Extension Ports
25 -48
Extension 24
Extension 1
Extension 72
Extension 49
D BS 72
and 96
Extension 48
Extension 25
D BS 96
only
or
Extension 49
Extension 56 Extension 32
Extension 25
D BS
72
D BS
40
C N 11
C N 12
C N 5
C N 13
C N 3
C N 14 C N 15
C N 1
C N 1
C N 2 C N 4
