Page 31: Figure 3-1, Cover removal -3

Section 300-Installation

Chapter 3. Cabinet Installation

DBS-2.3/9.2-300

DBS Manual - Revised April 2000

3-3

Wall-Mounting the Cabinet

Guidelines

• The DBS is shipped with the cover installed to protect components. Before

wall-mounting the cabinet, remove the cover.

• Handle the cabinet carefully to avoid damage.

Installation

1. Remove the eight screws from the front and sides of the cabinet.

2. Take the front cover off by pulling it from the bottom and lifting it up.

3. Take the side covers off by sliding them up, then away.

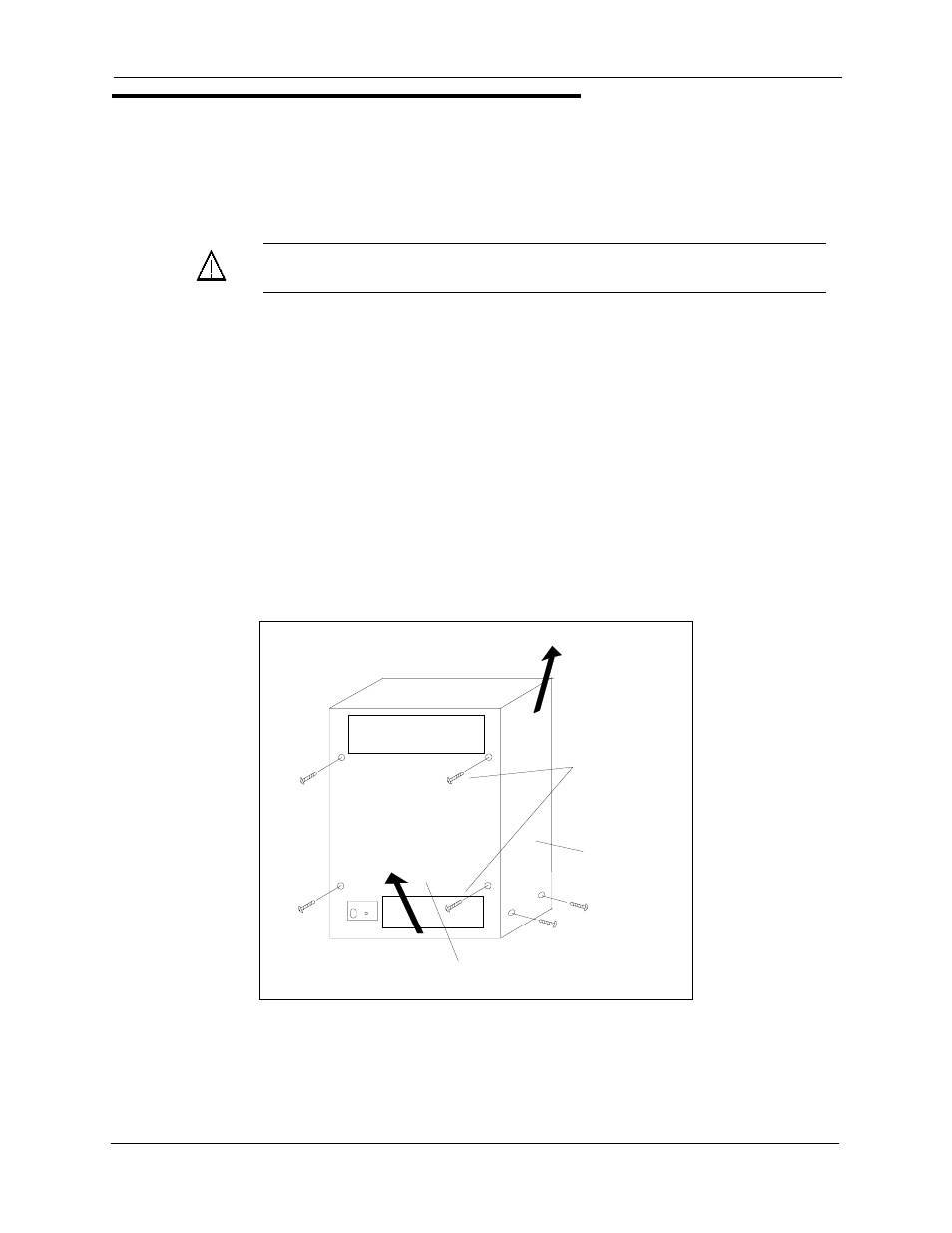

Figure 3-1. Cover removal

Caution: Always turn the power switch OFF before beginning installa-
tion.

Screw s

Front C over

Side C over
