Section 300-Installation

Chapter 3. Cabinet Installation

DBS-2.3/9.2-300

DBS Manual - Revised April 2000

3-5

Grounding

Guidelines

• Before grounding the DBS, read the “Lightning Protection/Grounding”

requirements beginning on page 1-6.

• The ground cable must be at least 18 AWG.

• Resistance to ground must be 10 Ohms or less.

Installation

1. Attach the ground cable to the ground screw on the front of the power

supply.

2. Connect the ground cable to the building ground.

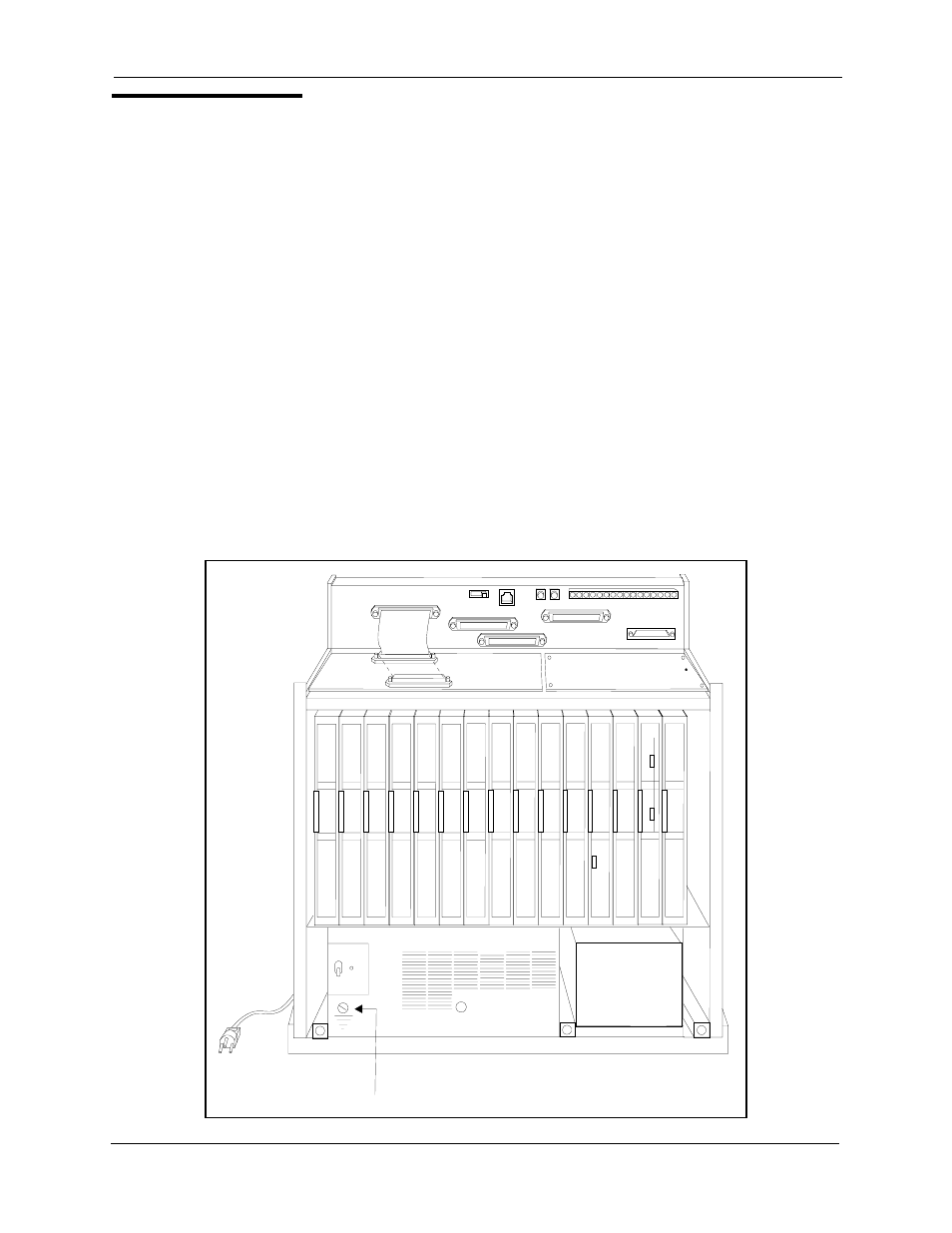

Figure 3-4. Cabinet ground screw

C N 11

C N 12

C N 13

C N 14

C N 6

SW 1

C N 3

TRK1

TRK2

TRK3

EC1

EC2

EC3

EC4

EC5

EC6

EC7

EC8 EC/TRK

SCC

CPC

AUX1

AUX2

C N 5 C N 4

C N 2

C N 1

G round Screw
