Chapter 3. Cabinet Installation Section 300-Installation
3-4 DBS Manual - Revised April 2000 DBS-2.3/9.2-300
4. Attach the mounting brackets to the four corners of the back side of the
cabinet.

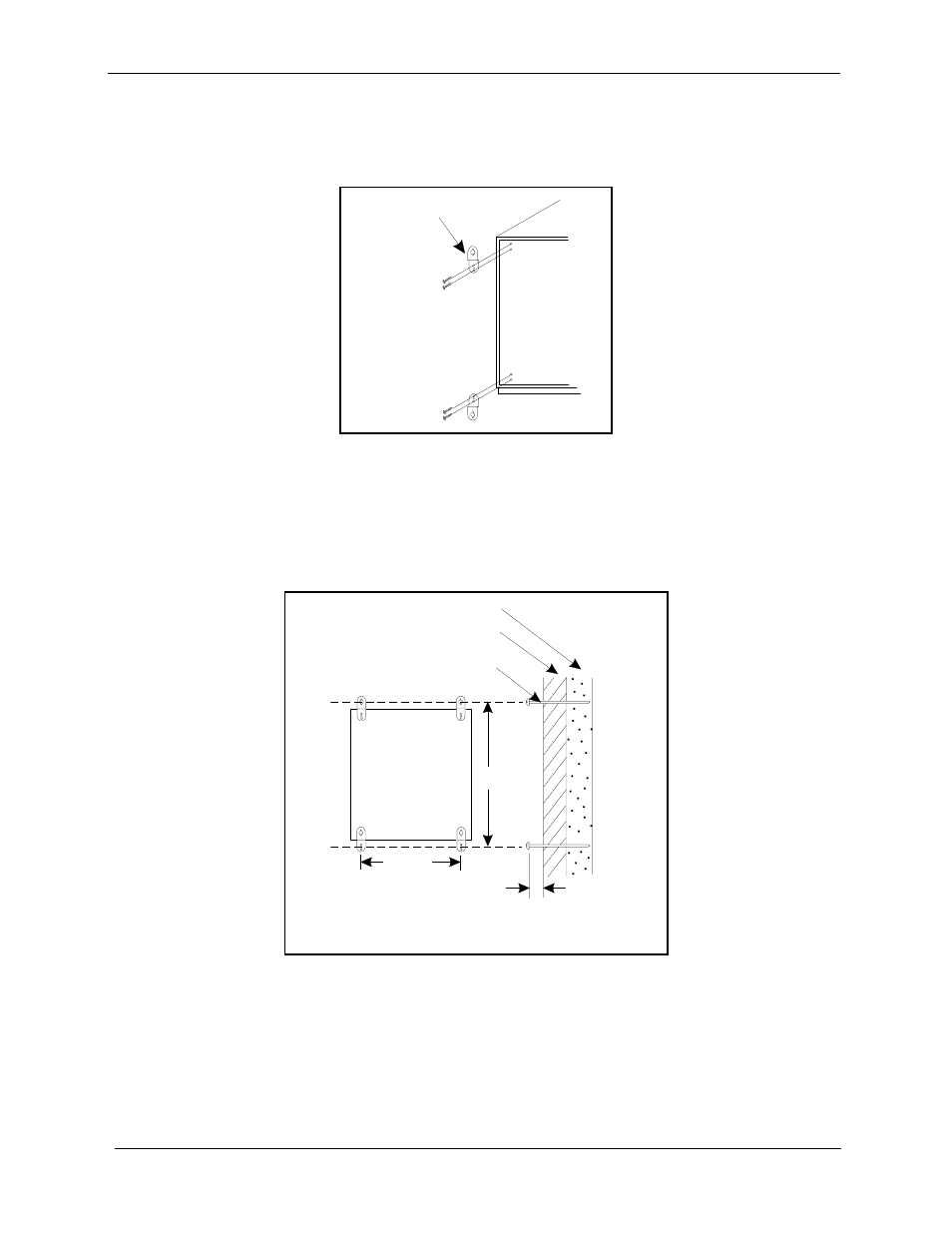

Figure 3-2. Cabinet mounting bracket
5. Install four screws in the wall studs according to the dimensions given in
Figure 3-3. (Note that the width dimension is different for the DBS 40.)
The screws are used to attach the mounting brackets to the wall. The
screws should protrude from the wall 5/16 in.
Figure 3-3. Cabinet wall-mounting
6. Hang the cabinet on the wall by placing the mounting brackets over the
screws.
7. Tighten the screws to secure the cabinet.
M etal M ounting
B racket
M ain C abinet
B ack Side
17 5/8"
(D B S 72, 96)
13 7/16"
(D B S 40)
22 3/16"
5/16"
W all
Stud
Screw
(#10-1 3/4)
