Page 39: Battery tray, dbs 72 and 96 -11

Section 300-Installation

Chapter 3. Cabinet Installation

DBS-2.3/9.2-300

DBS Manual - Revised April 2000

3-11

Installation for the DBS 72 and 96

1. Slide the battery compartment out and place the batteries inside the tray.

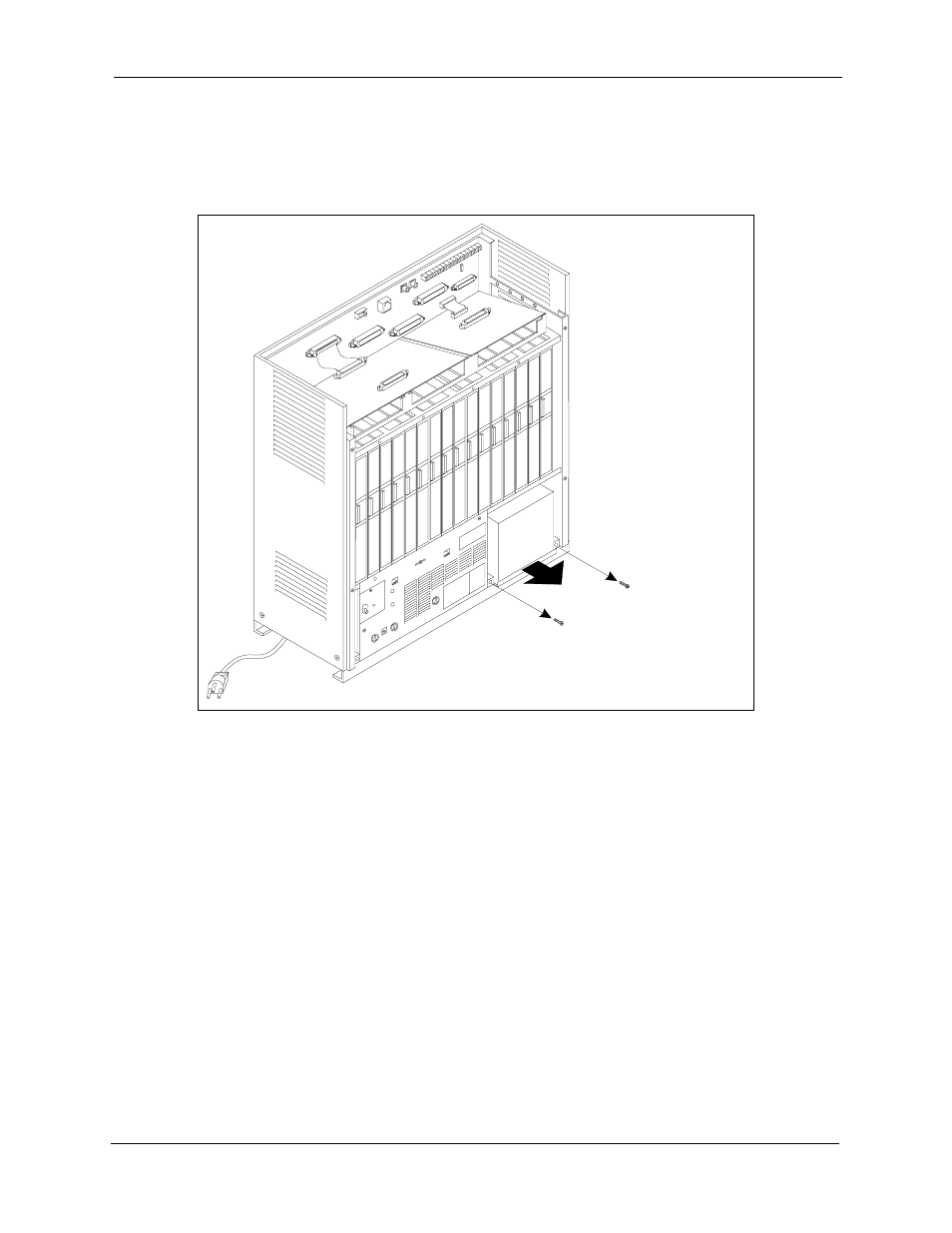

Figure 3-9. Battery tray, DBS 72 and 96

2. Connect the positive cable (red) to the + terminal on the first battery.

3. Connect the negative cable (blue) to the - terminal on the last battery.

4. Connect the remaining positive and negative terminals with the white

connection cables, as shown in Figure 3-10.

R em ove Screw s
and Slide B attery
Tray O ut
