16

Connecting a video recorder, DVD player.

You can also connect a video recorder or a DVD player to the EXT2
AUX-I/O

M

input socket.

The DVD recorder must be connected directly to the TV via the

EXT1 TO TV-I/O

N

socket. If there is a video recorder in between

the picture quality may be poor because of the copy protection system
built into the DVD recorder.

O

If you already have an external receiver (satellite receiver,
set-top box, cable TV box) connected to this socket, you can
connect the video recorder to the 'VCR', 'TO VCR', ...socket
of the external receiver.

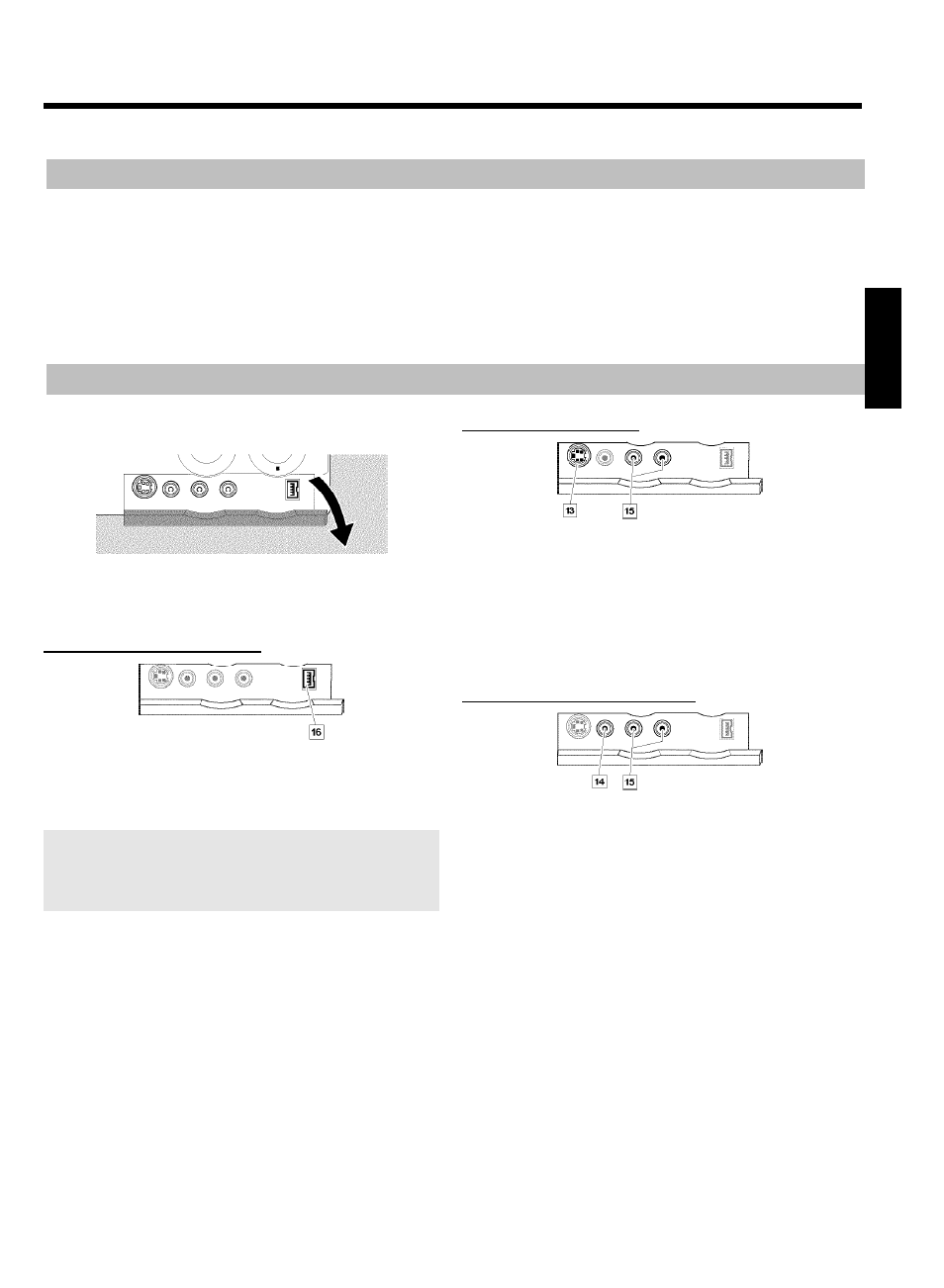

Connecting a camcorder to the front sockets

To copy camcorder recordings, you can use the front sockets. These
sockets are located behind the flap on the right hand side.

Recordings from the front sockets are stored on the HDD to make
editing easy. Then you can transfer them to a DVD+RW, DVD+R using
the 'Archiving-function'.

Digital (DV) input socket

If you have a DV or Digital 8 camcorder, connect the DV IN
(CAM2)

F

input of the DVD recorder to the appropriate DV output

on the camcorder.
Choose '

CAM2' as programme number for this input.

During recording on the HDD or a DVD+RW,DVD+R,the original
recording date and time are stored as DVD subtitles.
On playback,this data can be displayed on the TV screen by using the
'Subpictures' (Play back from HDD) or the'

E

' (DVD Play back)

function.

S video inputsocket

If you have a Hi8 or S-VHS(C) camcorder, connect the S-VIDEO
(CAM1)

C

input of the DVD recorder to the appropriate S-VHS

output on the camcorder.
You must also connect the audio input L AUDIO R (CAM1)

E

on

the DVD recorder to the audio output on the camcorder.

Choose '

CAM1' as programme number for this input.

Video (CVBS) inputsocket

If you have a camcorder that only has a single video output (Composite
Video, CVBS), connect the VIDEO (CAM1)

D

input on the DVD

recorder to the appropriate output on the camcorder.
You must also connect the audio input L AUDIO R (CAM1)

E

on

the DVD recorder to the audio output on the camcorder.

Choose '

CAM1' as programme number for this input.

ENGLISH

Connecting additional devices
