Page 95

ports statistics. Click
Clear
button to clean all counts.

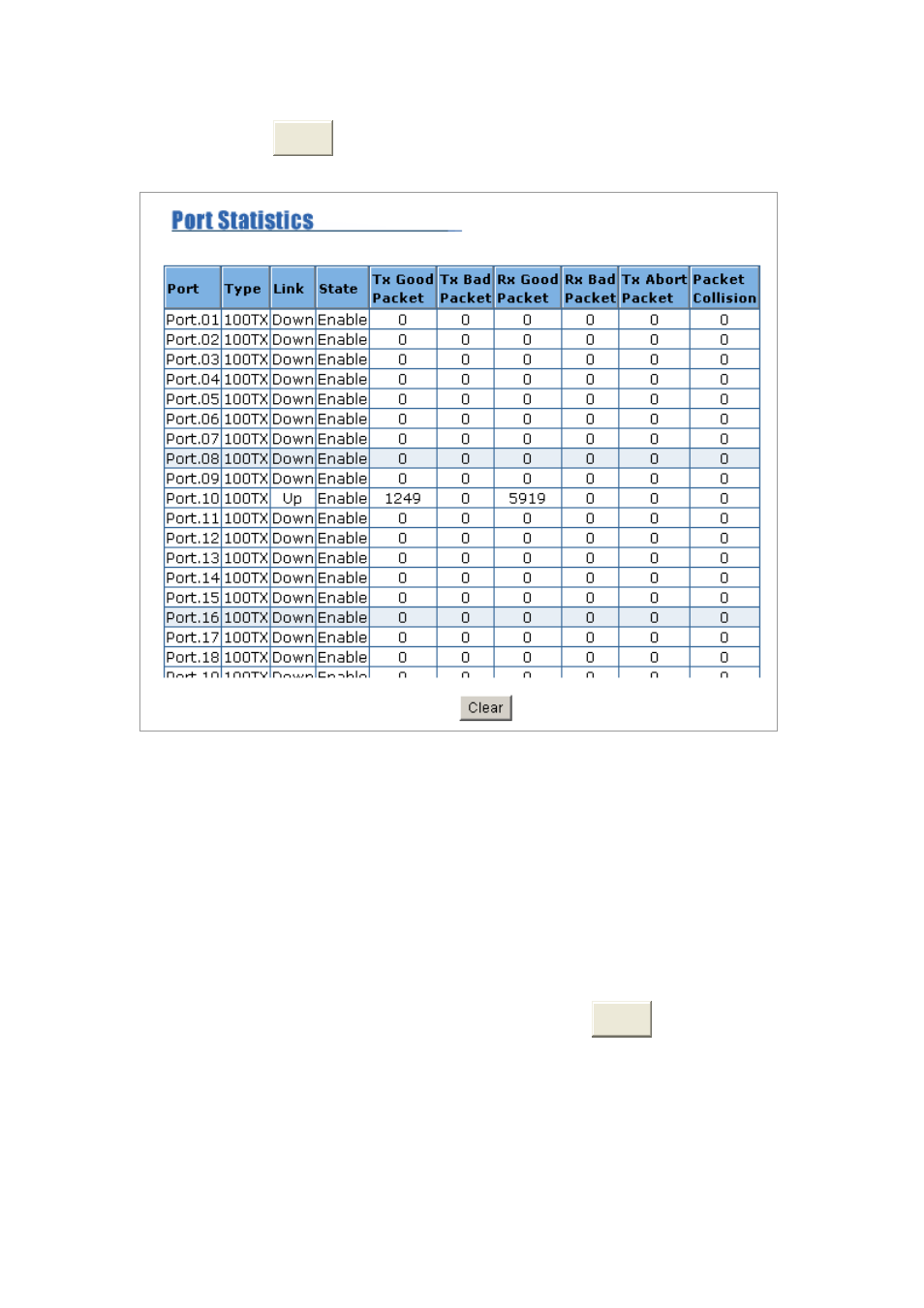

Port Statistics interface
4.7 Administrator
In Administrator function, it provides the following functions -- IP Configuration, Switch Settings,
Console Port Information, Port Controls, Trunking, Forwarding and Filtering, VLAN Configuration,
Spanning Tree, Port Mirroring, SNMP Management, Security Manager, and 802.1x Configuration.
4.7.1 IP Address
User can configure the IP Settings and DHCP client function, than clicks
Apply
button. After reset
the IP address, you must reboot the switch.
1.
DHCP Client:
"Enable" is to get IP from DHCP server. "Disable" is opposite. The DHCP client
function only works if you haven't assigned a static IP address that different than the switch default
IP. Once the default IP has been changed the DHCP will not effective and the switch will continue
using the manually entered static IP. If you have changed the switch to a static IP address, you
