2.2.1 Desktop Installation
To install the Switch on desktop or shelf, please follows these steps:
Step1:
Attach the rubber feet to the recessed areas on the bottom of the switch.
Step2:
Place the switch on the desktop or the shelf near an AC power source.
Step3:
Keep enough ventilation space between the switch and the surrounding objects.
"
Note
:
When choosing a location, please keep in mind the environmental restrictions discussed in
Chapter 1, Section 4, in Specification.
Step4:
Connect the Switch to network devices.
A.
Connect one end of a standard network cable to the 10/100/1000 RJ-45 ports on the front of the
Switch
B.
Connect the other end of the cable to the network devices such as printer servers, workstations
or routers…etc.
"
Note
:
Connection to the Switch requires UTP Category 5 network cabling with RJ-45 tips. For more
information, please see the Cabling Specification in Appendix A.
Step5:
Supply power to the switch.
A.
Connect one end of the power cable to the switch.
B.
Connect the power plug of the power cable to a standard wall outlet.
When the switch receives power, the Power LED should remain solid Green.
2.2.2 Rack Mounting
To install the switch in a 19-inch standard rack, please follows the instructions described below.
Step1:
Place the switch on a hard flat surface, with the front panel positioned towards the front side.
Step2:
Attach the rack-mount bracket to each side of the switch with supplied screws attached to the
package.

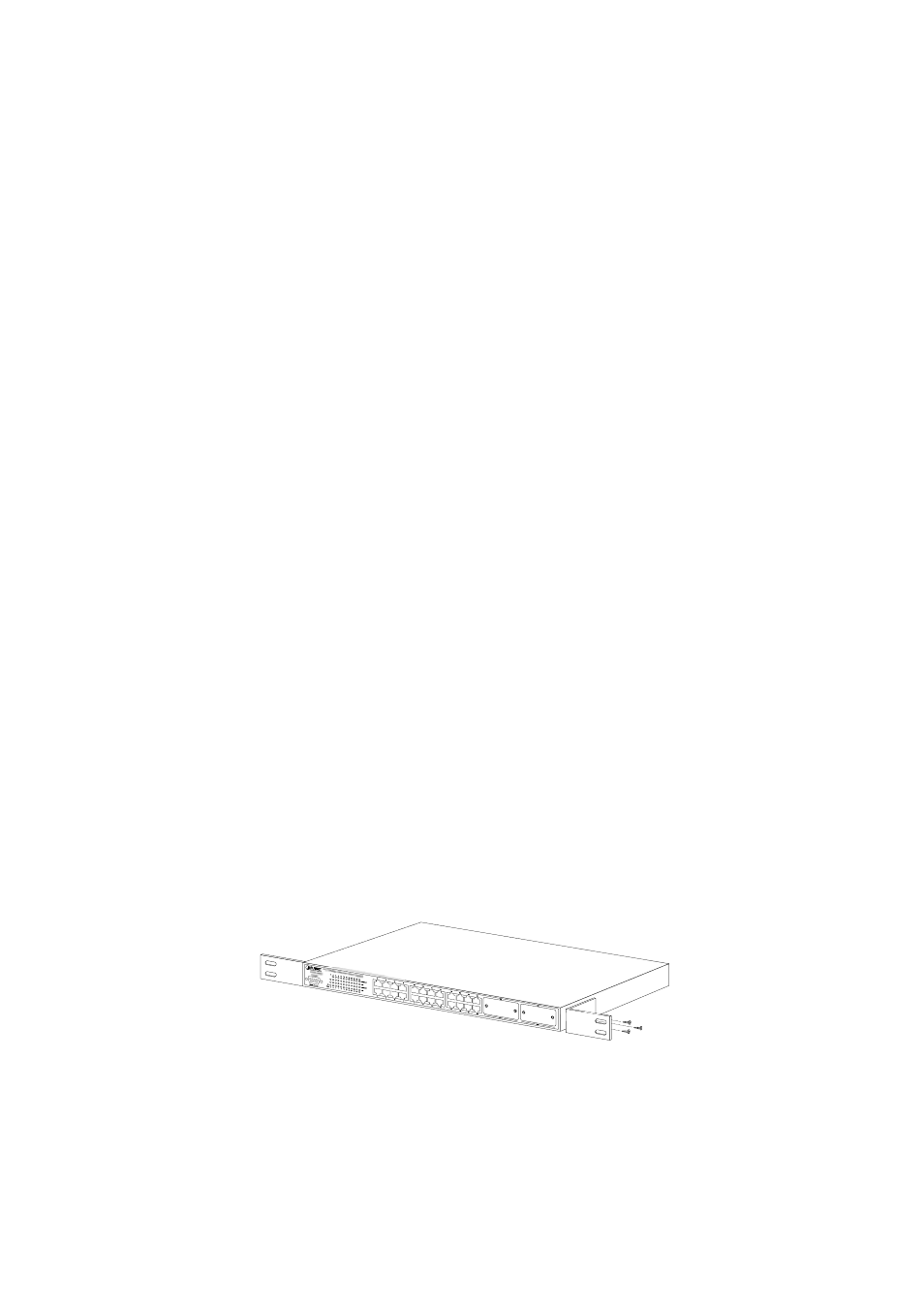

Figure 2-5 shows how to attach brackets to one side of the switch.
Figure 2-5
Attach brackets to the switch.
Caution:
You must use the screws supplied with the mounting brackets. Damage caused to the parts by using
incorrect screws would invalidate the warranty.
Step3:
Secure the brackets tightly.
