Planet Technology WGSW-2620P - Manual (Page 84)

2. Select .
3. TFTP Server IP: type the IP of TFTP server.
4. Firmware File Name: type the image file name.
5. Press "ESC" goes back to action line.
6. Select , it will start to download the image file.
7. When save successfully, the image file download finished, too.
8. Restart switch.

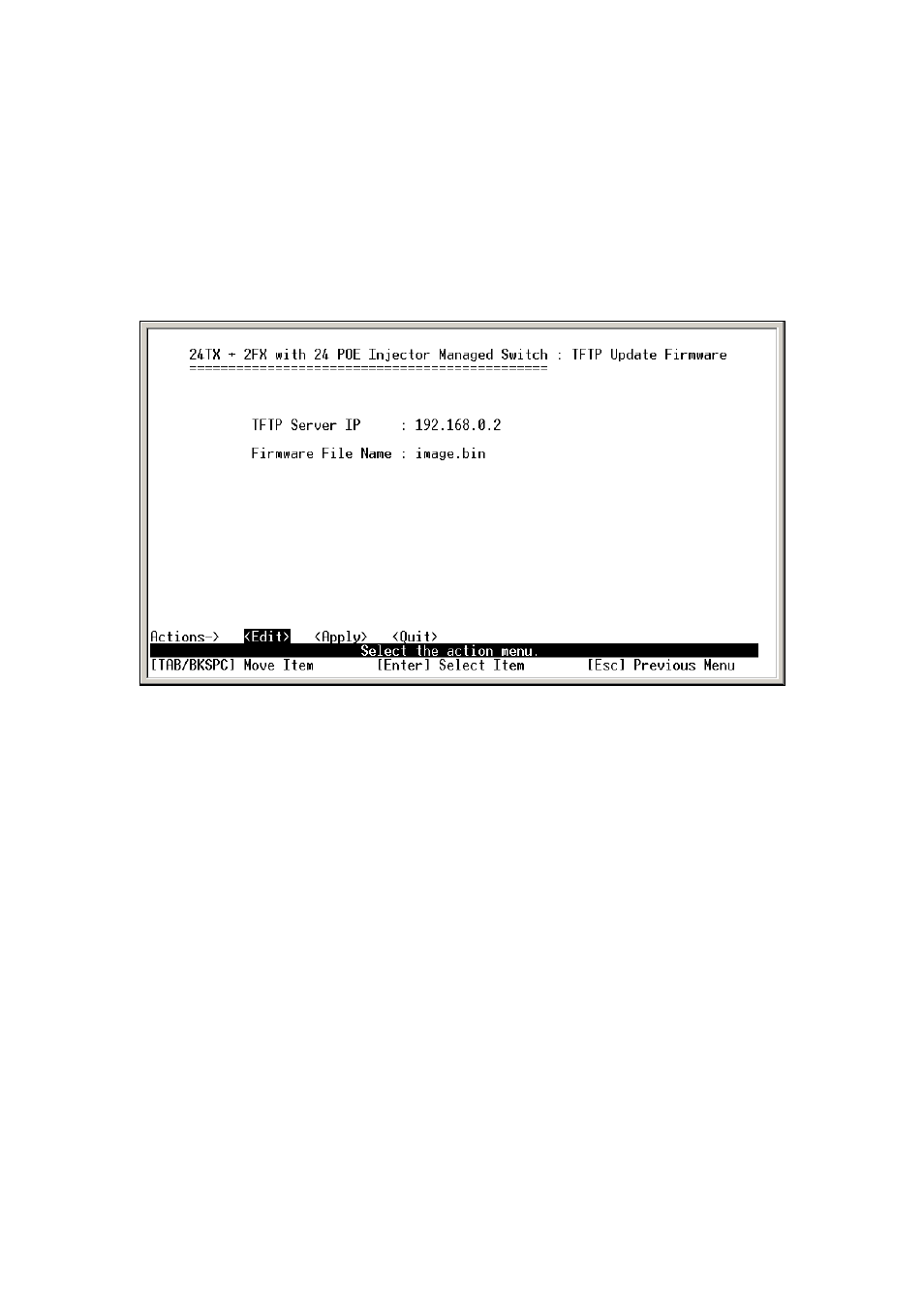

TFTP Update Firmware interface
3.4.9.3.2 TFTP Restore Configuration
You can restore EEPROM value, which saved in TFTP server, from TFTP server.
1. Start the TFTP server.
2. Select .
3. TFTP Server IP: type the IP of TFTP server.
4. Restore File Name: type the image file name.
5. Press "ESC" back to action menu line.
6. Select , it will start to download the image file.
7. When save successfully, the image file download finished too.
8. Restart switch.
