Page 47

System Reset Configuration: Restart the system or reset switch to default configuration.
UPS menu: configure the UPS function.
POE menu: configure the POE function.
Save Configuration: save the current configuration into the system memory.
Logout: Exit the menu line program.

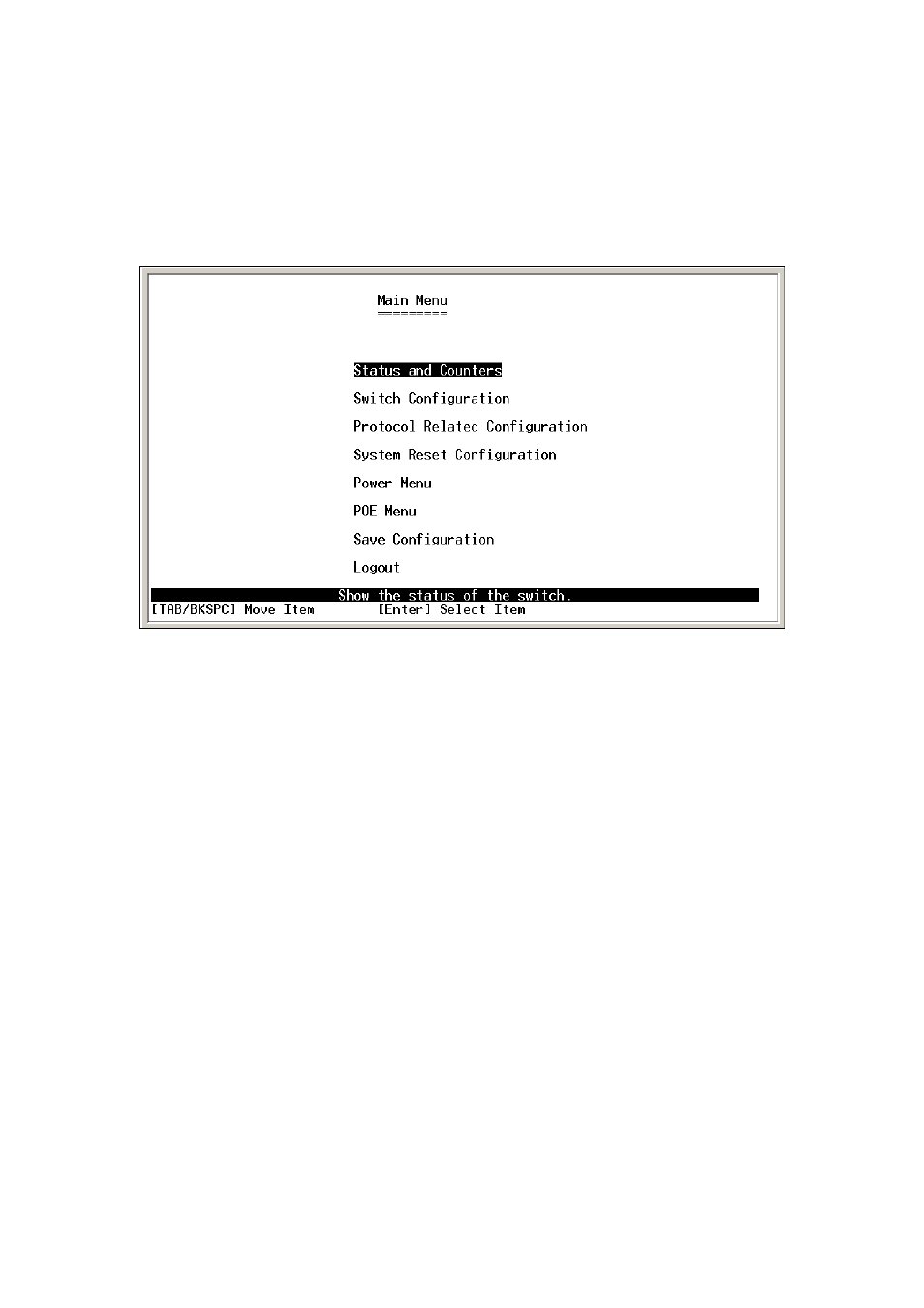

Main Menu Line Interface
Control Key description:
The control keys provided in all menus:
¾
Tab/Backspace:
Move the vernier to configure item.
¾
Enter:
Select item.
¾
Space:
Toggle selected item to next configure or change the value.
¾
Esc:
to exit the current action mode.
3.4.1 Status and Counters
In Status and Counters, you can view Port status, counters, and configure system parameter.
