3.

VLAN Name:

Type a name for the new VLAN, ex: VLAN01.

4.

VLAN ID:

Type a VID. The default is 1. There are 256 VLAN groups to provided configure.

5.

Protocol VLAN:

Press "Space" key to choose protocols type.

6.

Member:

Press "Space" key to change the member value.

Untagged:

this port is the member port of this VLAN group and outgoing frames are NO

VLAN-Tagged frames.

Tagged:

this port is the member port of this VLAN group and outgoing frames are

VLAN-Tagged frames.

NO:

it means that the port is NOT member of this VLAN group.

7. Press "ESC" key to go back action menu line.

8. Select

to apply the configuration.

"

Note

:

If the trunk groups exist, you can see it (ex: Trunk1, Trunk2…) on the port list, and you can

configure it is the member of the VLAN or not.

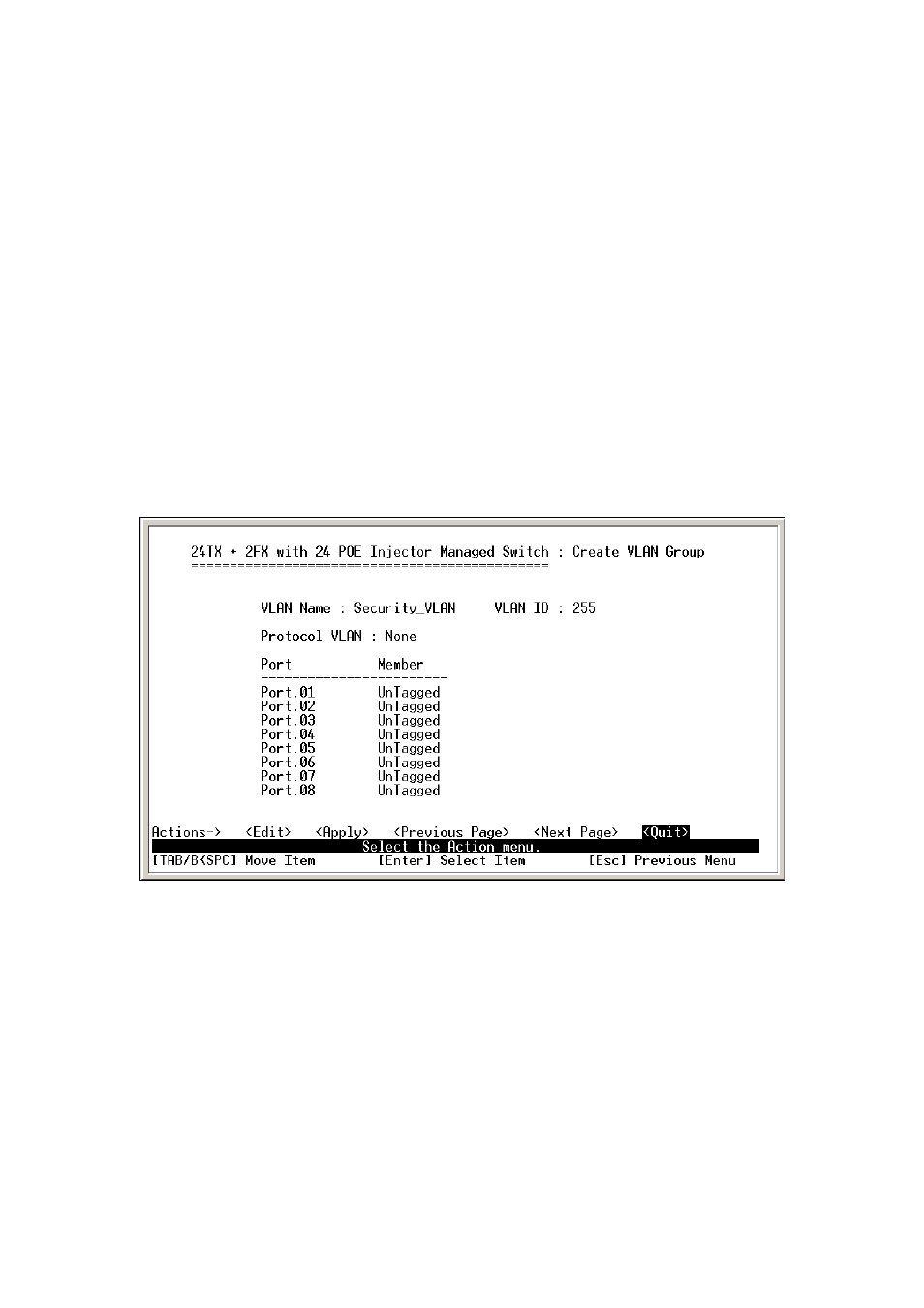

Create VLAN Group: 802.1Q interface

3.4.5.3 Edit / Delete VLAN Group

User can edit or delete a VLAN group.

1. Select

or action.

2.

Select the VLAN group that you want to edit or delete, then press enter.

3. In

action, user can modify the member port and remove some member ports from this

VLAN group.

"

Note

:
