3.4.8.1.2 System Configuration
You can configure the STP system parameter after enable the STP function. You can view spanning tree
informationa about the Root Bridge on the left.
1. Select
2.
Priority:
assign path priority number.
3.
Max Age:
the maximum path age
4.
Hello Time:
the time that controls switch sends out the BPDU packet to check STP current status.
5.
Forward Delay Time:
forward delay time.
6. Select
.

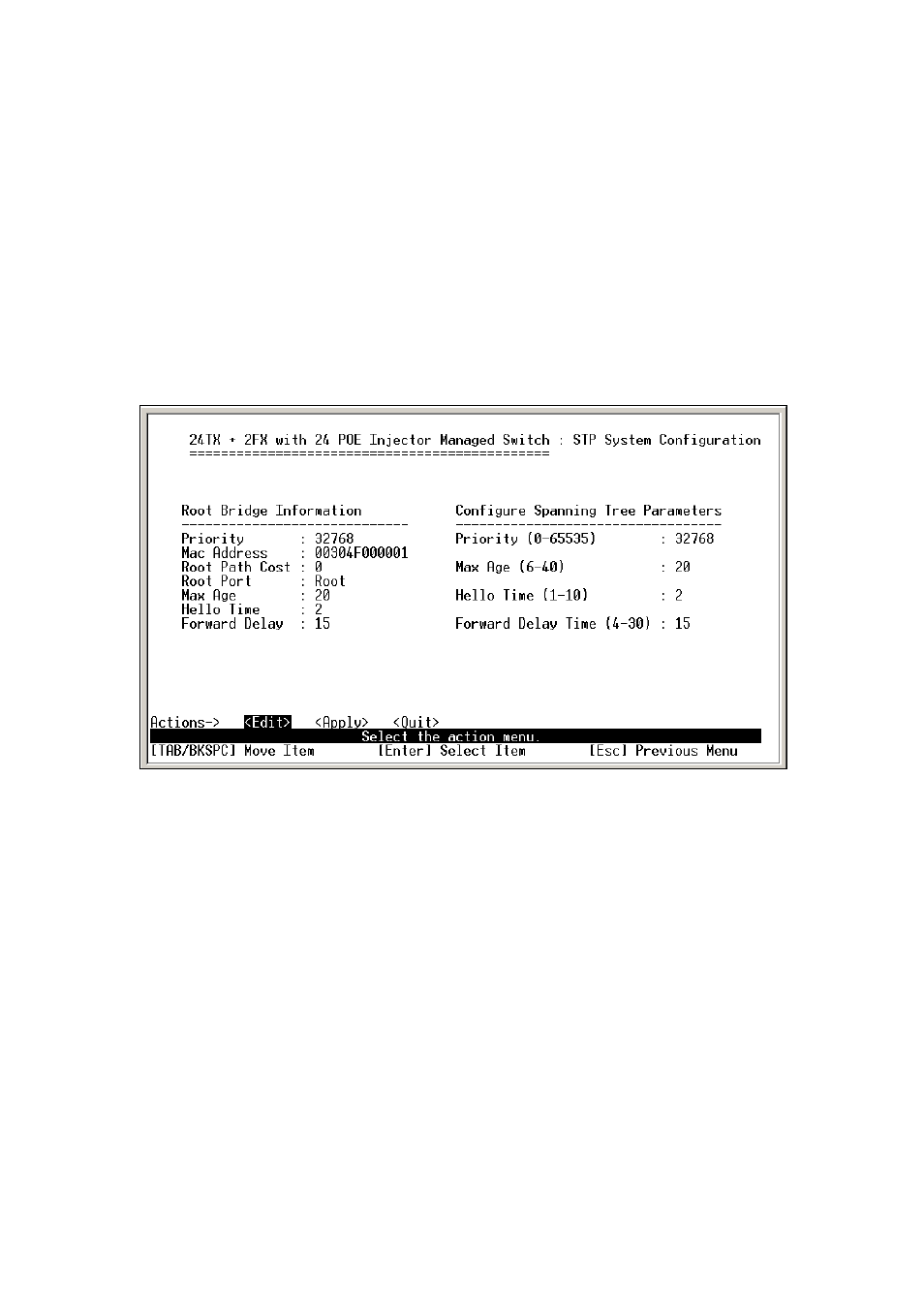

STP System Configuration interface
3.4.8.1.3 Per Port Setting
1. Select
.
2.
Path Cost:
specifies the path cost of the port that switch uses to determine which port are the
forwarding ports.
3.
Priority:
This is mean port priority; you can make it more or less likely to become the root port.
4. Press
“ESC”
goes back action menu line.
5. Select
to apply all configure value.
6.
On the action menu line you can press Page> return to previous page.
