5.
Apply the configuration by selecting

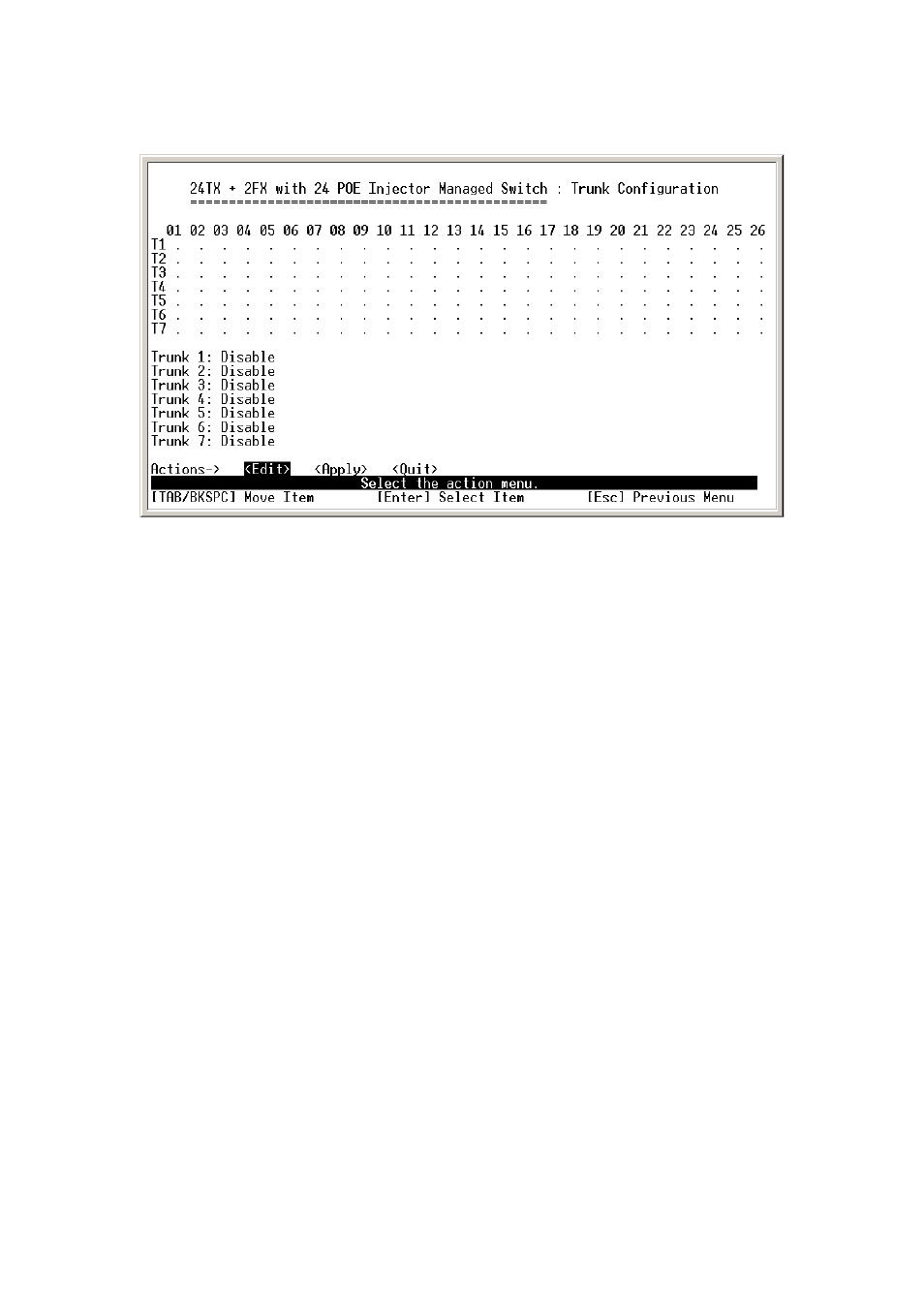

Trunk Configuration interface
3.4.4 Port Mirroring Configuration
The port mirroring is a method for monitor traffic of switched networks. The specific port can monitor
traffic through the mirror ports. The monitored ports in or out traffic will be duplicated into monitoring port.
1. Select
the
2.
Mirroring State:
select the port-mirroring mode. The default value is "Disable". To start port
mirroring, you must select one of port mirroring mode.
RX:
RX packet only
TX:
TX packet only
Both:
RX and TX packet
