Configuring IP Routing 94
FS6300 NMS User Manual 6 • Configuring the 3096RC Card
Add Routes
To add an IP route to the 3096RC:
1. In the IP Overview window for the 3096RC, click the Add button to define a new route.

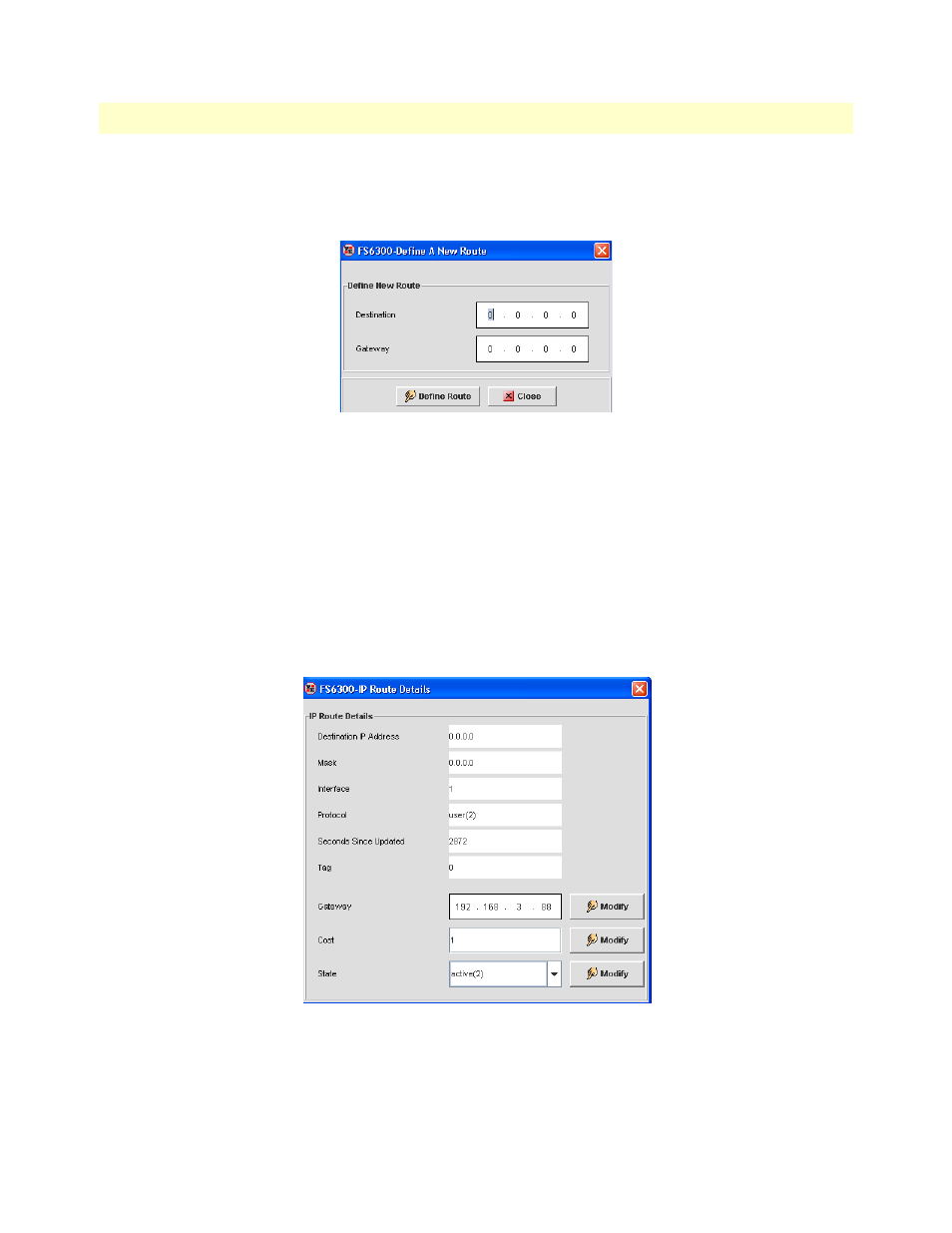

Figure 81. Add a New Route for 3096RC
2. Enter a Destination address for the new route. An entry with a value of 0.0.0.0 is considered a default
route.
3. Enter a Gateway address for the new route. The gateway address specifies the IP address where the packets
should be forwarded.
4. Click Define Route.
Modify Routes
To modify an existing IP route for the 3096RC:
1. In the IP Overview window for the 3096RC, select the entry in the table of the route you want to modify.
Figure 82. Modifying a Route for 3096RC
2. The IP Route Details window displays. You may only modify the gateway address, cost, and state of the
route.
3. Enter your desired changes and click Modify for each change. A confirmation message displays.
