Firmware upgrade window – Patton electronic FORESIGHT 6300 User Manual
Page 45
Upgrading Firmware
45
FS6300 NMS User Manual
2 • Discovering Your Network
2. The FS6300 Firmware Upgrade window displays.

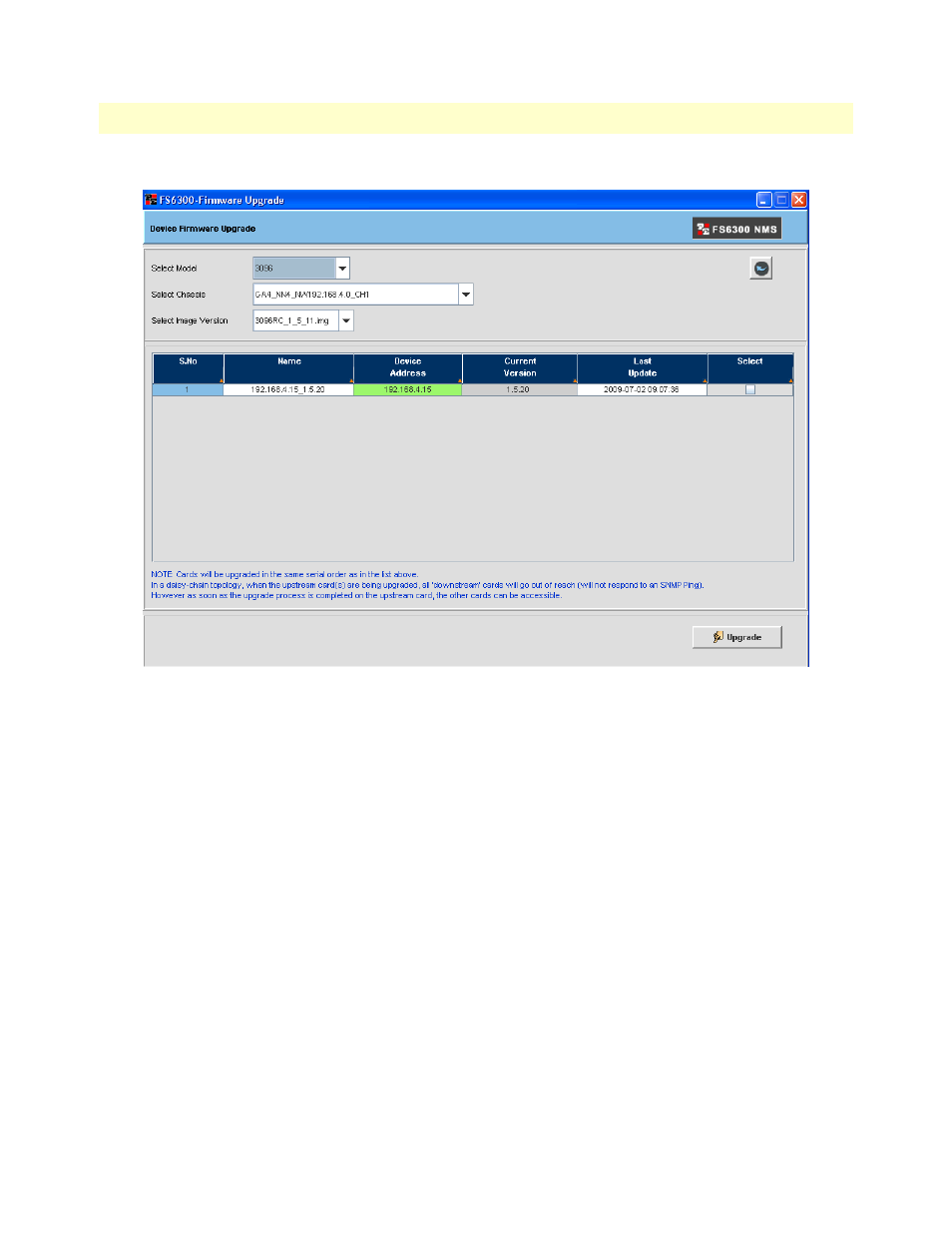

Figure 31. Firmware Upgrade window
3. Select the desired Model, Chassis, and Image Version from the drop-down menus. Available cards will
display in the firmware table.
4. Select the checkbox in the table for the card(s) you want to upgrade.
Note
The NMS will upgrade the cards in the same order that they are listed
in the table. In a daisy-chain topology, when the upstream card(s) are
being upgraded, all “downstream” cards will be temporarily unavail-
able and will not respond to an SNMP ping request. However, the
other cards will be accessible as soon as the upgrade is completed for
the upstream card.
5. Click Upgrade.
