Introduction 106
FS6300 NMS User Manual 7 • Configuring the 3196RC Card
Introduction
The Patton Model 3196RC is a TDM concentrator with 16 iDSL ports. There are several ways to reach the
configuration menu for the 3196RC card:
• Click on Network Maps in the main menu tree, then click on Chassis. Right-click on the 3196RC icon.
• Select the 3196RC card from the main menu tree, then right-click on the card icon in the main window.
• Navigate to Network Database > Managed Objects > Cards in the main menu tree, then right-click on the
IP address of the card in the table in the main window.
The best way to reach the configuration menu for a card is to select the card in the main menu tree, then right-
click on the card’s icon in the main window.
3196RC Configuration Menu
The following options are available in the pull-down menu for the 3196RC card:

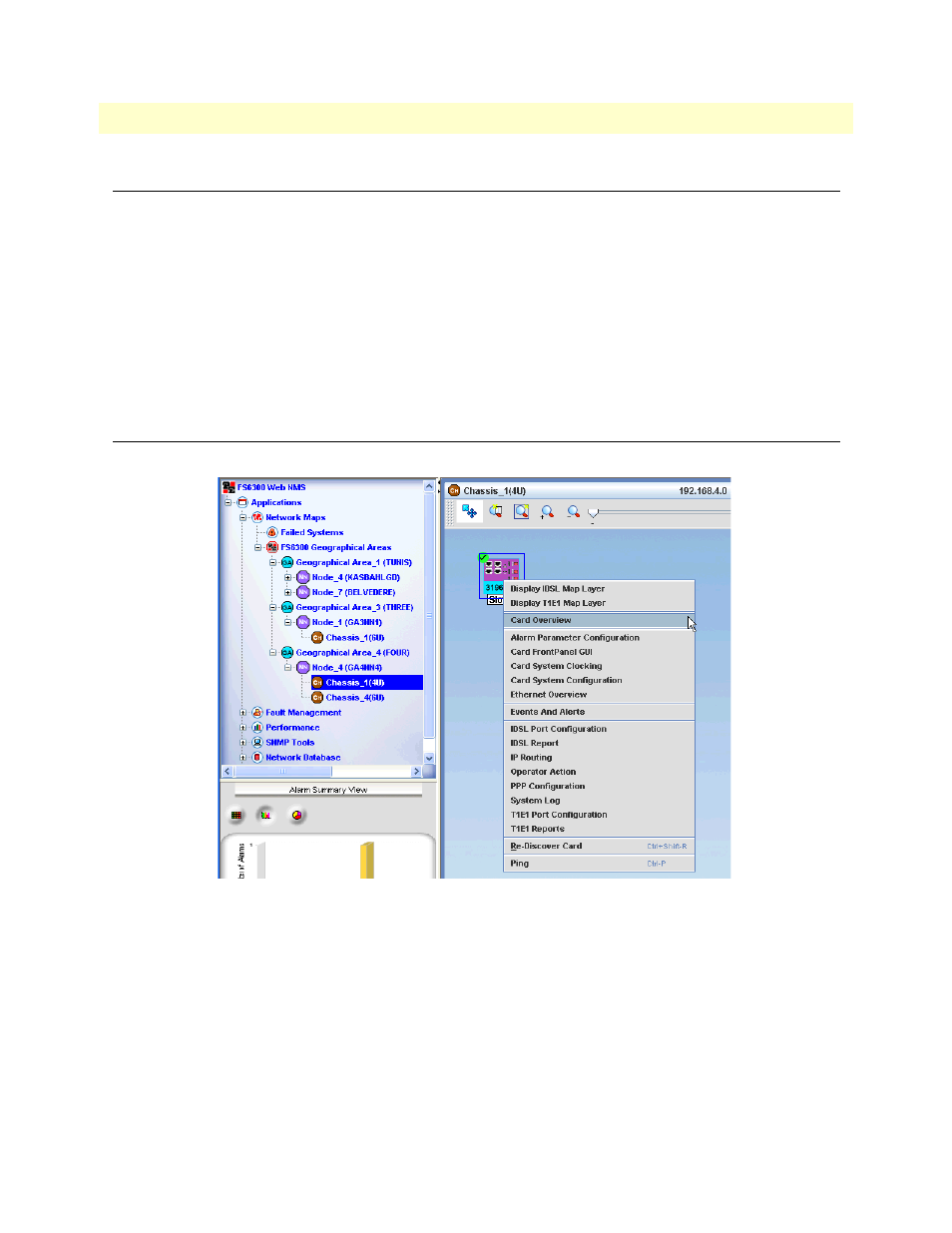

Figure 91. 3196RC Configuration Menu
• Display iDSL Map Layer – See “Viewing the iDSL Map Layer” on page 125
• Display T1E1 Map Layer – See “Viewing the T1/E1 Map Layer” on page 124
• Card Overview – Shows information for Box Status, Card Info, and Alarm Info
• Alarm Parameter Configuration – See “Configuring Alarms through a Card in the Chassis” on page 48
• Card Front Panel GUI – See “Viewing the Front Panel” on page 107
• Card System Clocking – See “Configuring Card System Clocking” on page 54
• Card System Configuration – See “Configuring the Card System” on page 107
