Configuring the Alarm Trap Manager 49
FS6300 NMS User Manual 3 • Configuring Alarms and Clocking
3. Click on Modify Parameters to configure the alarms.

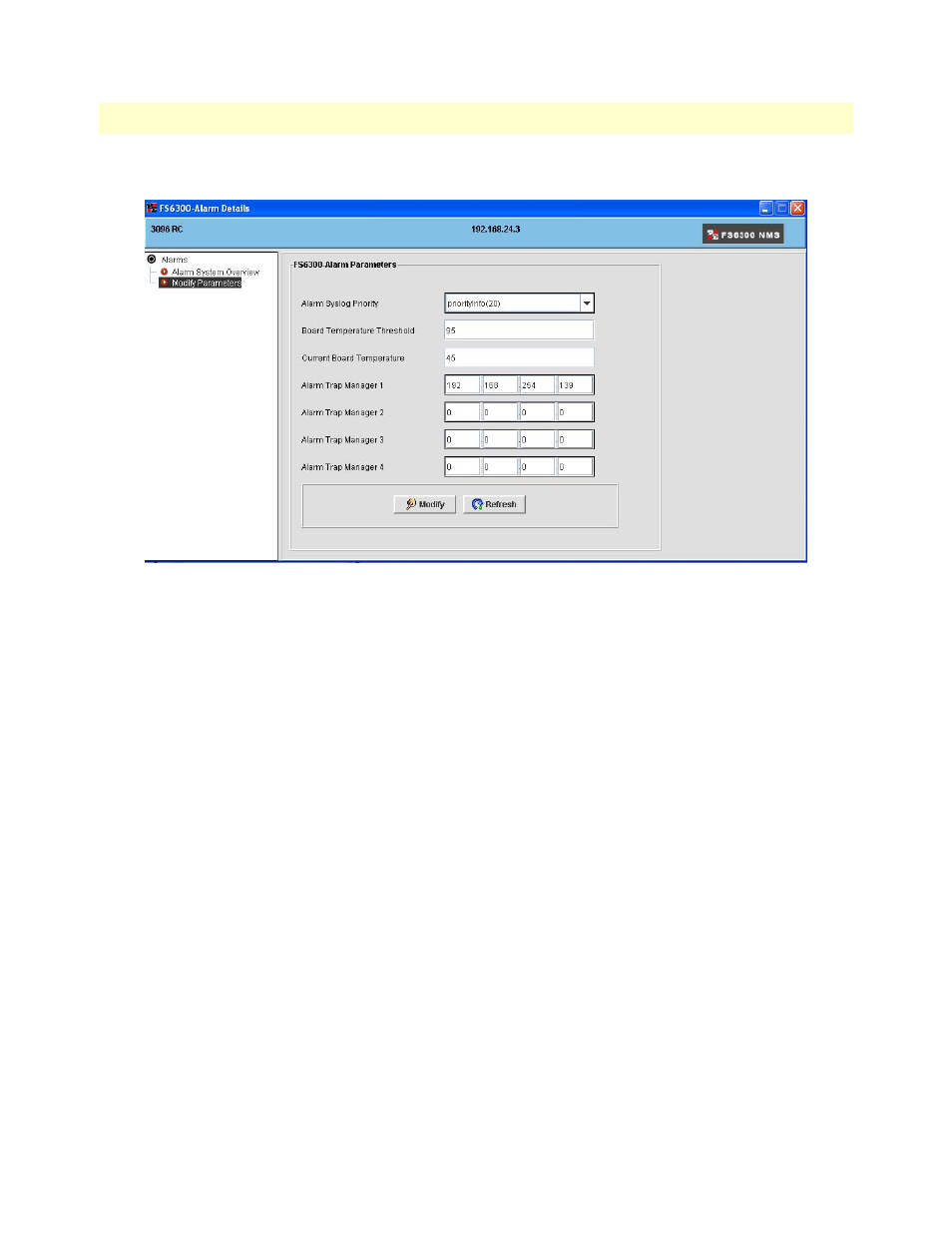

Figure 34. Modify Alarm Details
Modify Parameters: Configure the FS6300 Alarm Parameters through the Modify Parameters window.
– Alarm Syslog Priority
– Board Temperature Threshold
– Current Board Temperature
– Alarm Trap Managers 1-4
4. Click Modify to commit your configuration to the card. You will need to record the configuration to save
it to the card’s volatile memory. (See “Record the current configuration” on page 60).
5. Return to the Alarm Systems Overview screen. Before the most severe active alarm is propagated to the
icons in the NMS, you must first do Steps 6-7.
6. Click on the Clear All Alarms button. You should receive a “Configuration Result” window indicating
success.
7. Click on the Refresh button.
8. Close the Alarm Details window.
9. Repeat Steps 2-8 for each card in the chassis. After this is completed, return to the view of the chassis in the
main NMS window.
