Configuring G.SHDSL Ports 91
FS6300 NMS User Manual 6 • Configuring the 3096RC Card
Determine Best Payload Rate
Click on Line Provision in the menu tree of the Port Configuration window to determine the best payload rate
for the port. The Line Provision tool works by resolving line length and line quality. The CO interprets line
probe messages from the CPE and calculates a worst-case payload value. The worst-case value determines the
highest payload rate the CO and CPE can acheive without errors.
Note Line Probe must be enabled on the CPE for the Line Provision tool to work.
Note The Line Provision tool will retrain the DSL line.

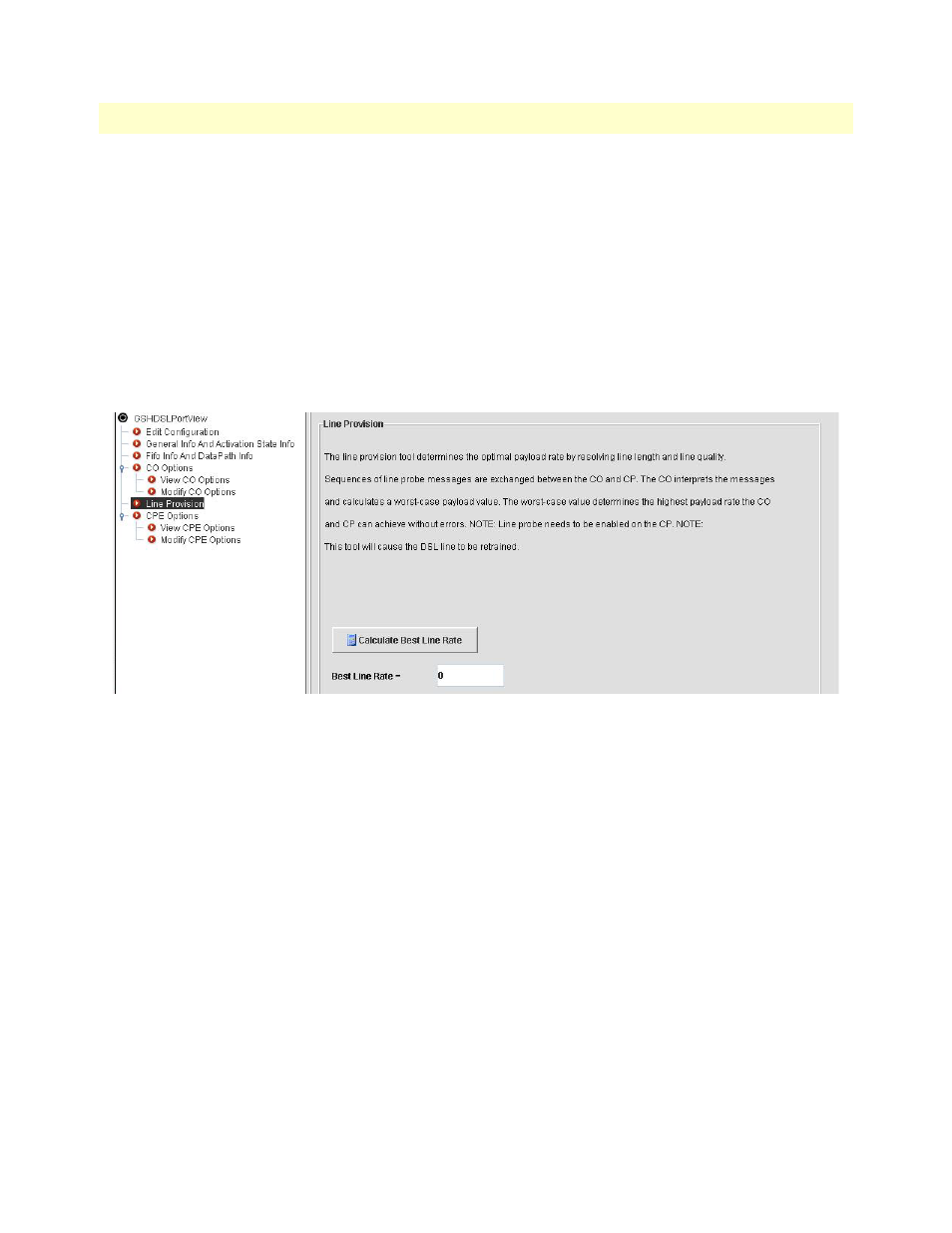

Figure 78. 3096RC Line Provision Tool
Click the Calculate Best Line Rate button to determine the best payload rate.
A status message will display when the tool is finished. Click OK.
