4-CH MPEG-4 Digital Video Recorder 13

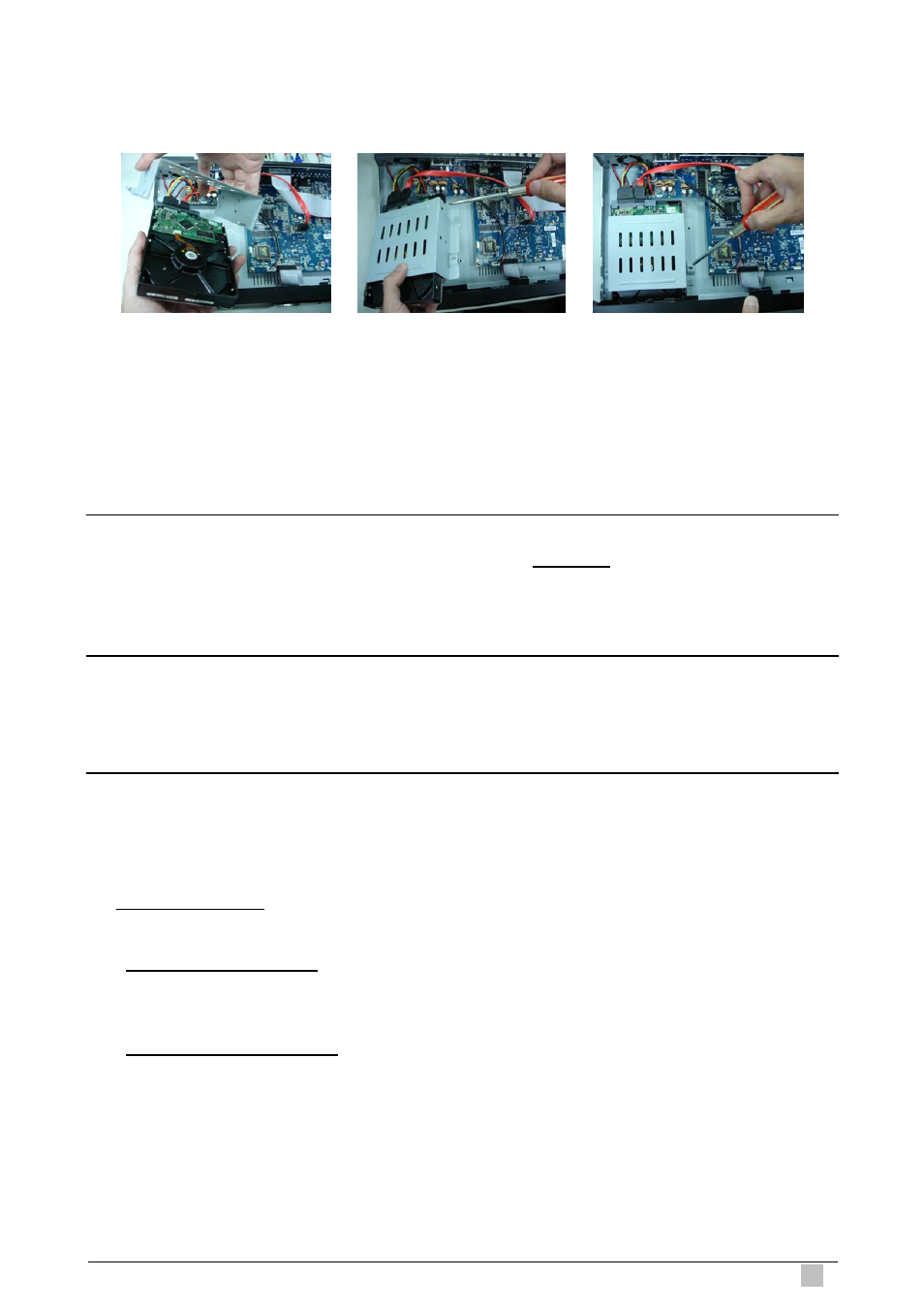

Step4:
Screw the HDD onto the HDD bracket (Two screws for each side), and then screw
the HDD bracket back to the DVR base.
Step5: Close the upper cover of the DVR, and fasten all the screws you loosened in Step 1.
3.2 Camera Connection
The cameras must be connected and power-supplied BEFORE the DVR is turned on. The
DVR will automatically detect the video system of the connected camera(s) (NTSC / PAL),
and switch itself to the correct system.
Note:
1. For detailed DVR video input / output ports, please refer to “2.2 Rear Panel”.
2. If you want to make a video backup with audio, please connect audio camera to the CH1 which
supports the audio function.
3.2.1 Normal camera connection
1) Power connection
Connect the camera with indicated power supply.
2) Video cable connection
Connect the camera video output to the DVR video input port with a coaxial cable or
RCA line with BNC connector.
3) Camera Setup MONITOR
For detailed camera title, ID, protocol and baud rate setup, please refer to “REMOTE”.
