Setup
6 Connect the power cords to the scanner’s AC inlet, to
the printer’s AC inlet and to AC outlets.
NOTE:
• The terminator must be installed or set to ON on the last SCSI device only
(
see page 66 ).
1 Make sure the computer, scanner and the other
connected peripheral devices are turned off.
2 Connect the SCSI cable (not provided) to the computer’s
SCSI connector and to the scanner’s SCSI connector A or B.
• The SCSI-2 board must be installed in the computer.
If you do not have a SCSI-2 board or a SCSI interface cable, you
will need to purchase one from your local computer store or
dealer (
see “SCSI interface” on page 298 ).
• If other SCSI devices are connected to the computer, connect the
scanner anywhere in the SCSI chain.

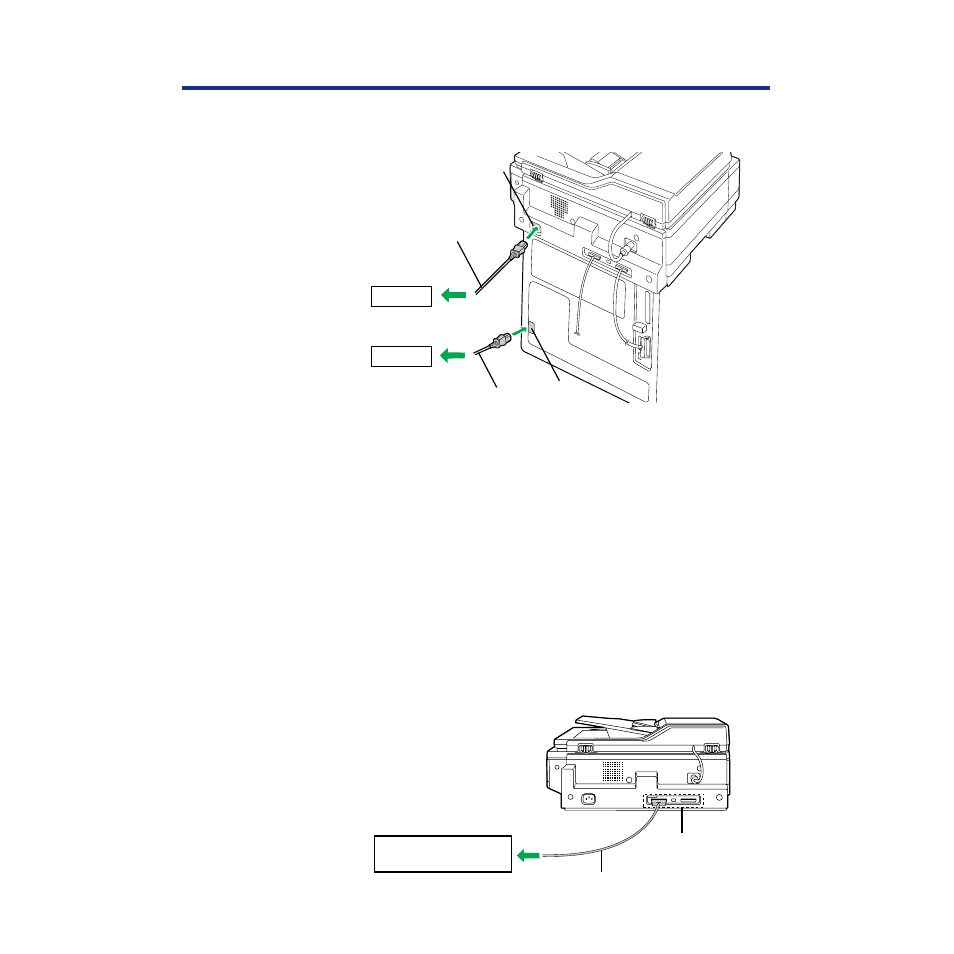

AC inlet
Power cord
AC outlet
AC outlet
Power cord AC inlet
Connecting the
scanner to a
computer
Computer’s SCSI
connector
SCSI connector
A or B
SCSI cable
