Options
The printer controller board ships with the following memory configuration:
• The DIMM slot numbered J1, is reserved for the printer’s system software
ROM DIMM.
• The DIMM slots numbered J8, J2 and J3 are reversed for SDRAM
DIMMs. Install a SDRAM DIMM in the empty slot to increase the memory
of your printer.
Additional SDRAM DIMMs may be used for your printer in 32 or 64 MB
configurations, allowing your printer a maximum memory configuration of
192 MB of SDRAM.
To install a SDRAM DIMM you will need to remove the printer controller
board, install the SDRAM DIMM, then replace the controller board in the
printer. For instructions,
see “Removing and replacing the printer controller
board” on page 273 .
Installing SDRAM
DIMMs

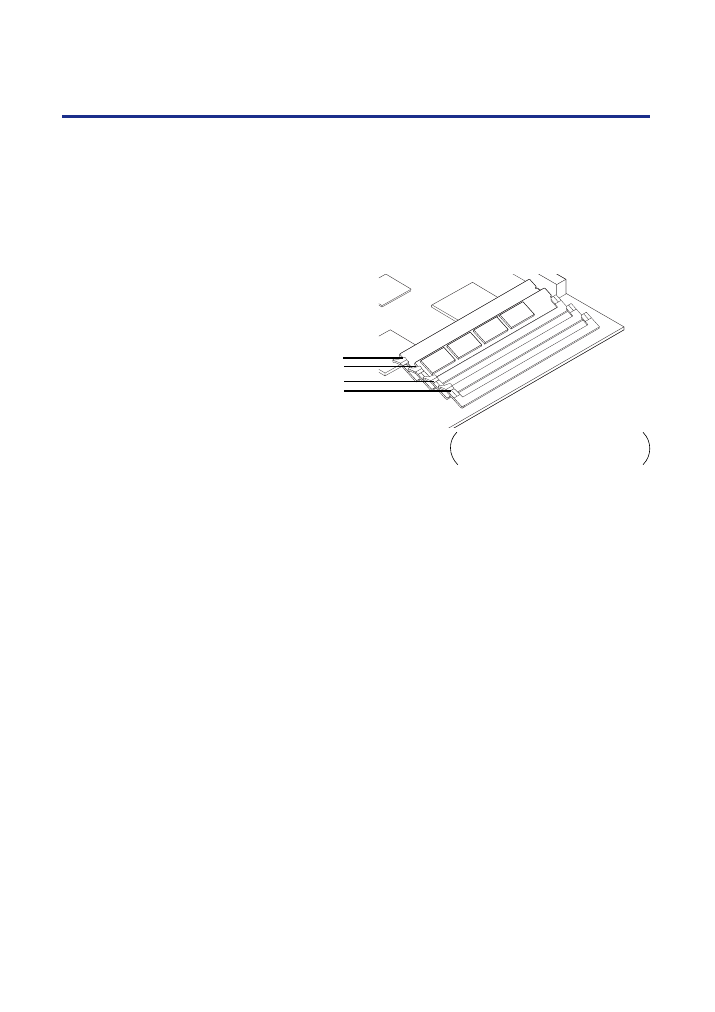

J8 ( DIMM slot )
J1 ( ROM DIMM )
J2 ( DIMM slot )
J3 ( DIMM slot )
The lever may be only on one side
of each socket.
