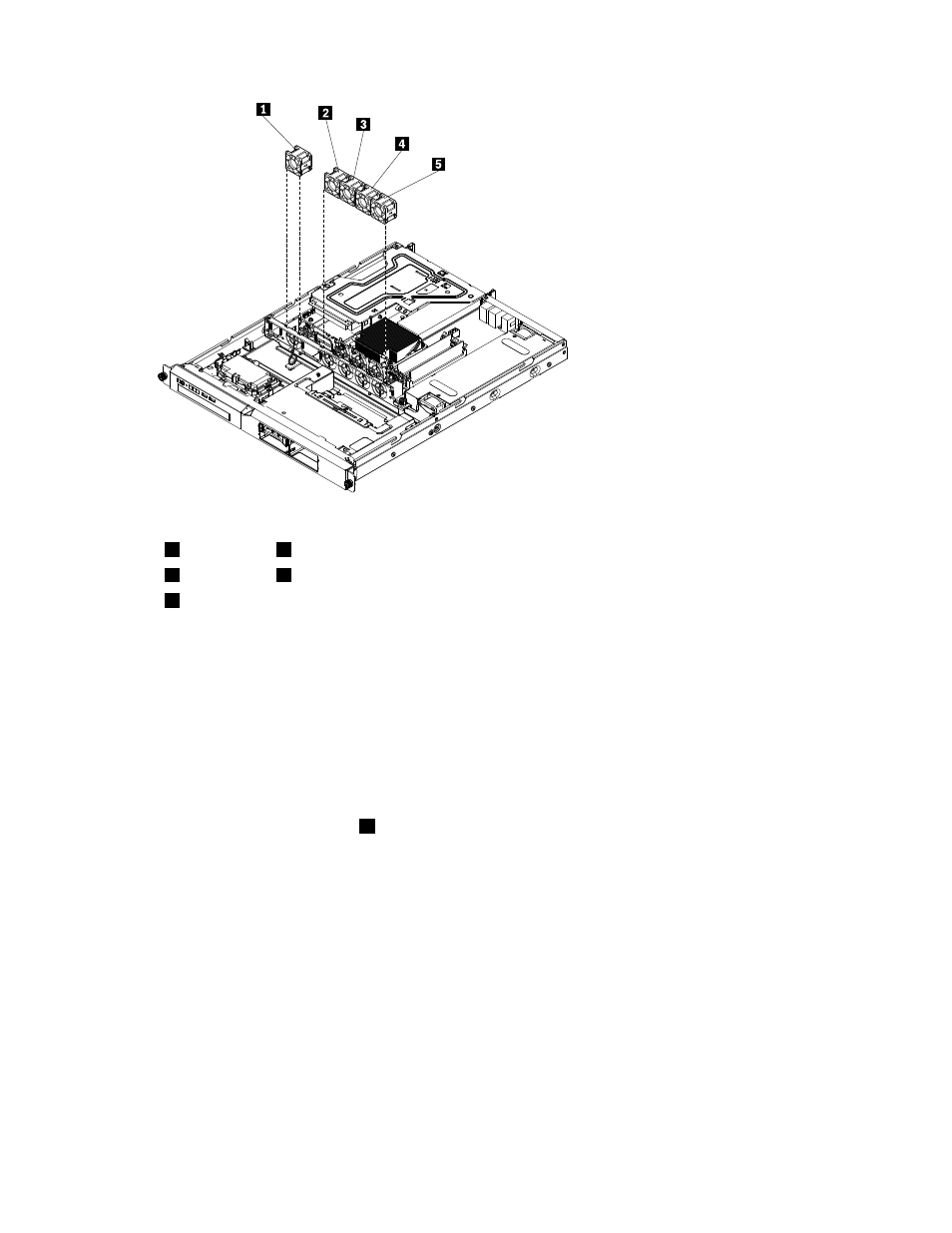

Table 14. Removing the fan
1
Fan 1
4
Fan 4
2
Fan 2
5
Fan 5
3
Fan 3
9. If you are instructed to return the fan, follow all packaging instructions, and use any packaging materials
for shipping that are supplied to you.
Installing a fan assembly
To install the replacement fan, complete the following steps:
1. Position the replacement fan so that the airflow arrow on the fan points toward the rear of the server.
Note: Correct airflow is from the front to the rear of the server.
2. Install the replacement fan in the bracket:
a. Make sure that the fan cable
1
sits in the channel on the side of the fan.
