Roller, lower pinch removal – Lexmark 24XX-100 User Manual
Page 98
4-38
Service Manual
24xx
Roller, Lower Pinch Removal
1. Remove the top cover. Go to
2. Slide the carrier to the far left of the printer.

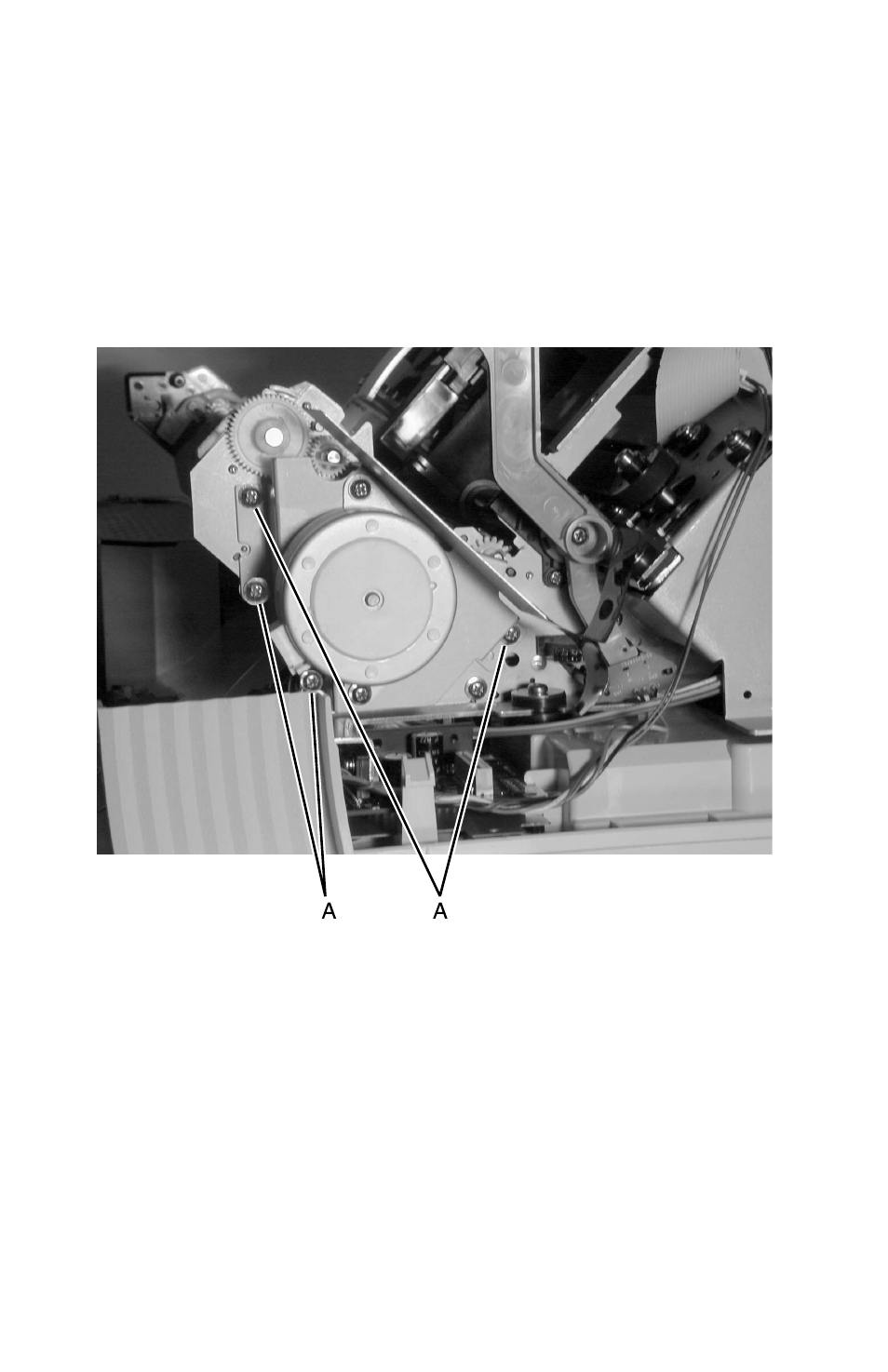

3. Remove the four screws [A] from the paper feed motor bracket.
4. Remove the screw from the top of the serial interface card
bracket.
5. Disconnect the paper feed motor cable from the logic board and
remove the paper feed motor and bracket from the printer.
6. Slide the carrier to the left side of the printer.
