4-8 Service Manual
24xx
Covers, Top Removal
1. Turn the printer off and disconnect the power cord at the printer.
2. Remove the tractor assembly, if it is installed in the pull tractor
position, by pressing the locking levers and pulling the tractor
assembly out of the printer.
3. Remove the ribbon access cover. Go to “Covers, Ribbon
Access Removal” on page 4-6 .
4. Remove the front cover. Go to “Covers, Front Removal” on
page 4-6 .
5. Remove the option cover. Go to “Covers, Option Removal” on
page 4-7 .
Note: With the option cover removed, you can see the operator
panel cable attached to the logic board.
6. Disconnect the operator panel cable from the logic board.

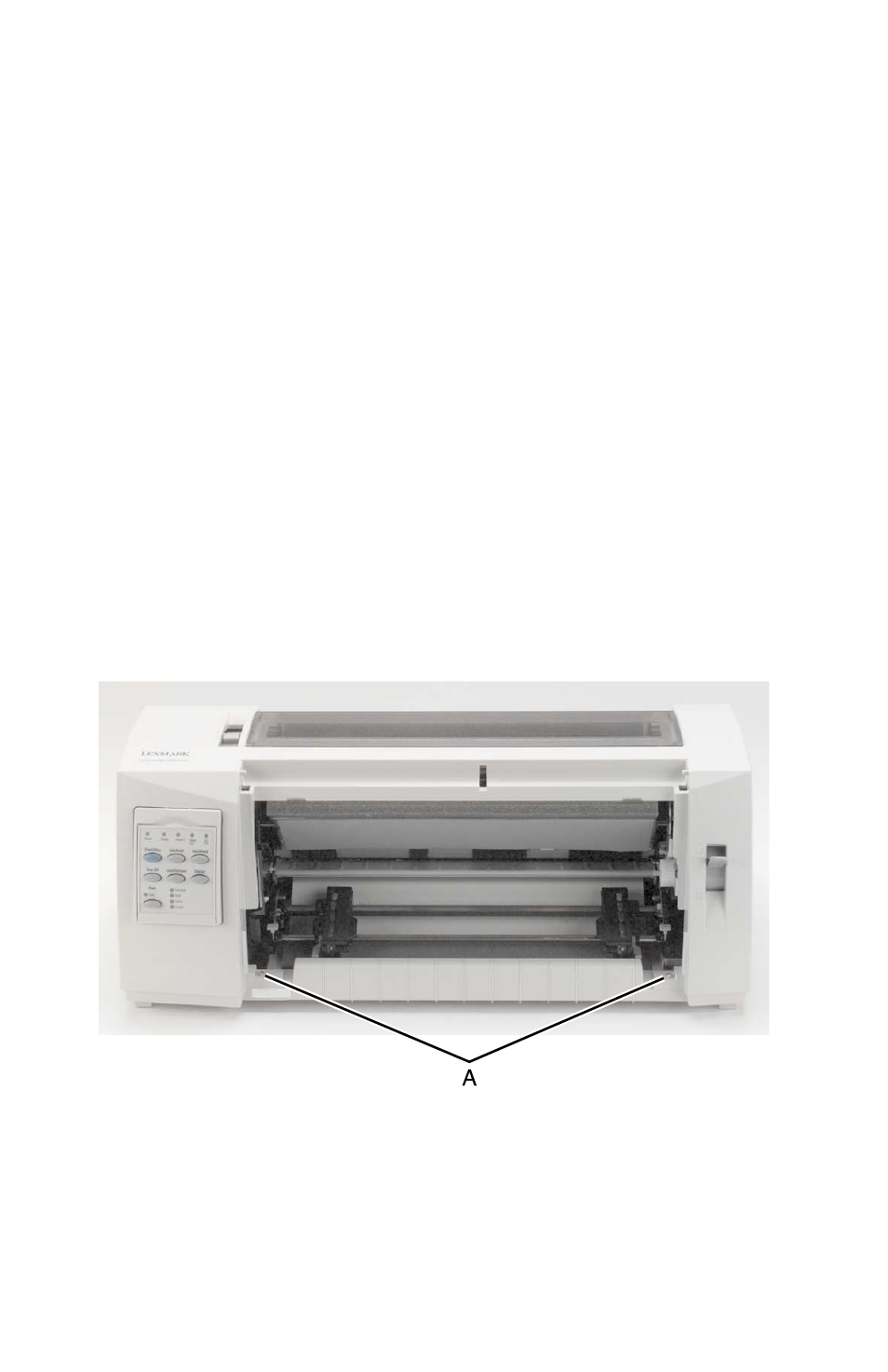

7. Remove the two screws [A] from each side of the front cover
area.
