Print Unit Removal
1. Remove the top cover. Go to
2. Disconnect all cables from the logic board, except the power
supply cable.
3. Remove the screw from the form thickness lever and remove
the lever.

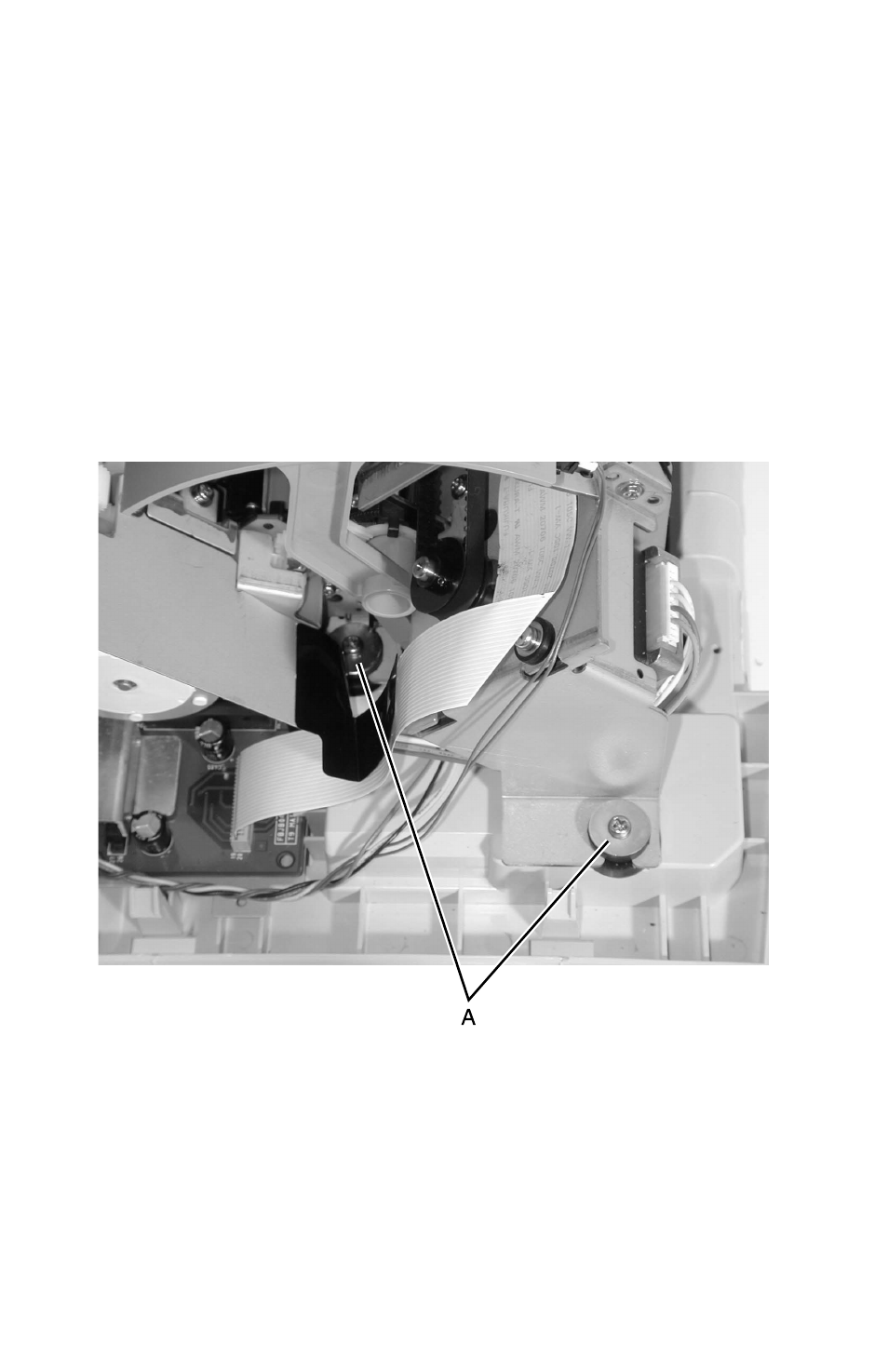

4. Remove the two grommet anchored screws [A] from the left
side of the print unit.
