Carrier removals, Carrier removal – Lexmark 24XX-100 User Manual
Page 76

4-16
Service Manual
24xx
Carrier Removals
Carrier Removal
1. Remove the top cover. Go to
2. Remove the printhead from the carrier. Go to
3. Loosen the carrier belt:
a.

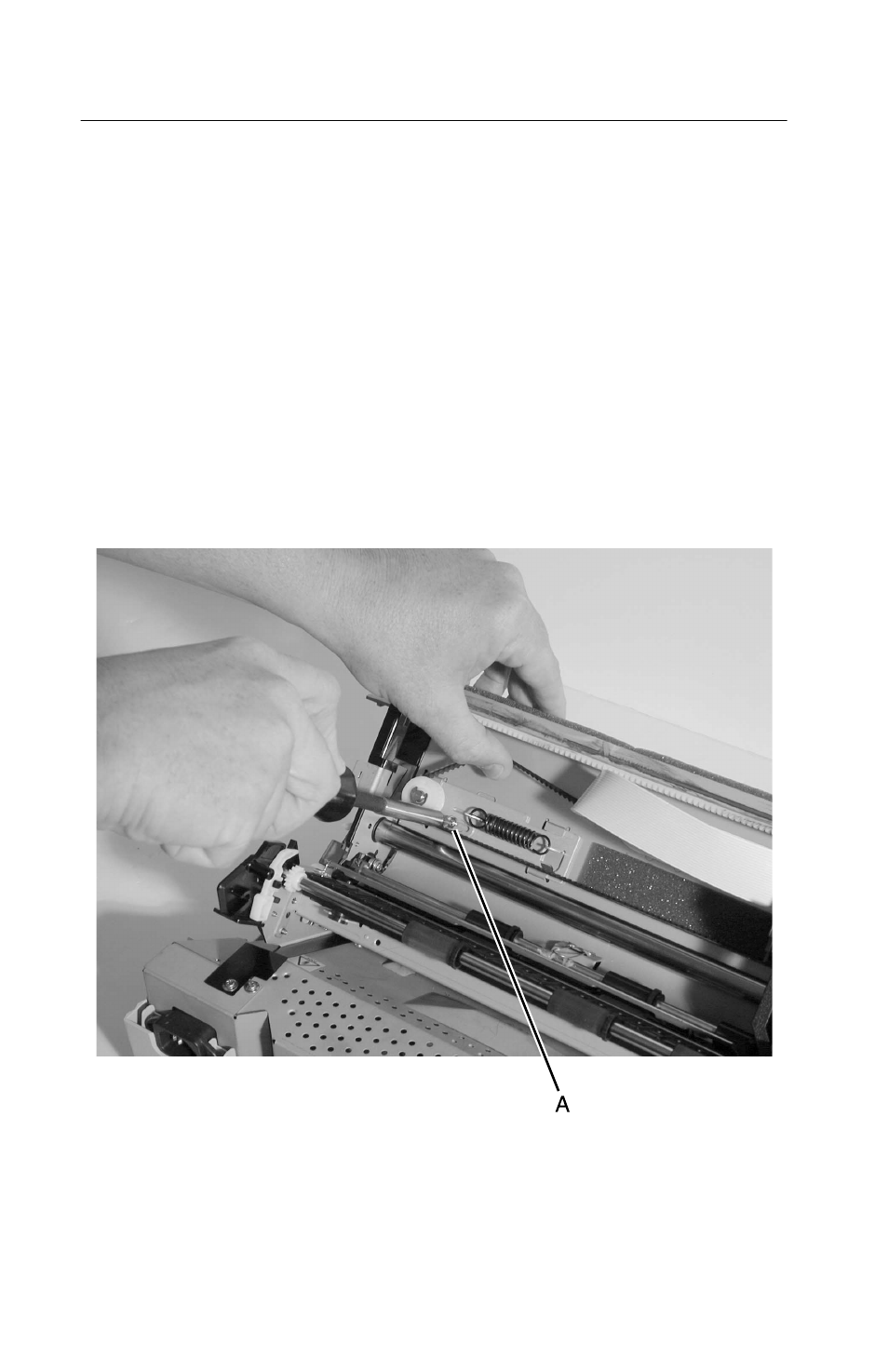

Loosen the tension screw [A].
b.
Remove tension from the belt, by pulling up on the belt.
c.
Tighten the tension screw. Loosening the screw tightens the
belt.
