System Components
Page 3-16 Telephones
3
MLX-28D 3
The MLX-28D telephone ( Figure 3–4 ) provides the following features:
■ Optional Direct-Line Console (DLC) operation
■ Display (2 lines by 24 characters)
■ 28 line buttons that can be programmed with features
■ 4 fixed display buttons, 4 unlabeled display buttons for screen selection,
and 8 fixed-feature buttons
■ Support of one or two Direct Station Selectors (DSSs) or PassageWay
Direct Connection Solution
MLX-28D telephones cannot be wall-mounted.

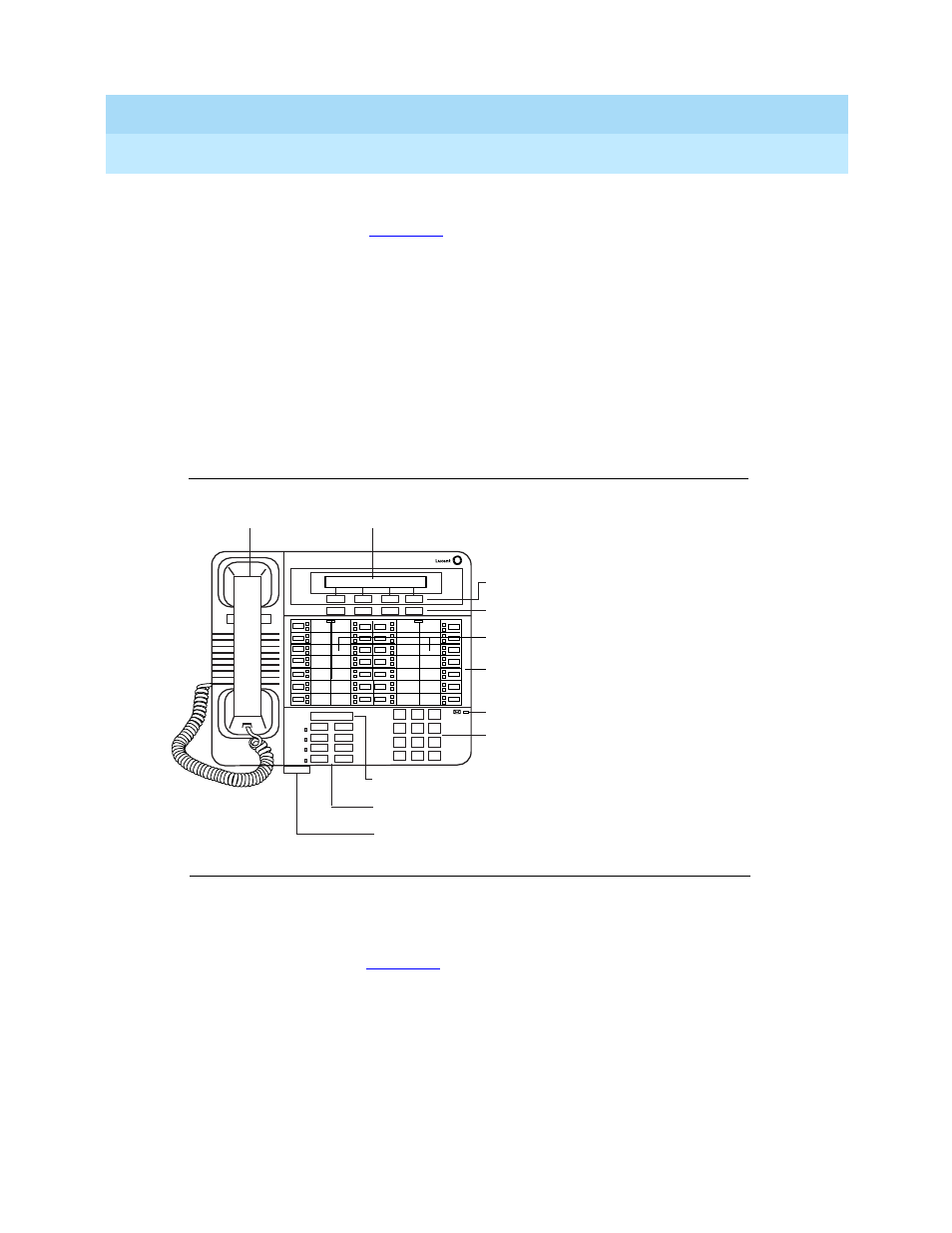

Figure 3–4. MLX-28D Telephone
MLX-20L 3
The MLX-20L telephone ( Figure 3–5 ) provides the following features:
■ System programming and optional DLC or QCC operation
■ Display (7 lines by 24 characters)
■ 20 line buttons that can be programmed with features
■ 14 fixed and unlabeled display buttons and 8 fixed-feature buttons
■ Support of one or two DSSs or PassageWay Direct Connection Solution
MLX-28D Home Menu Inspct More
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
OPER
1 2 3
4 5 6
7 8 9
0 # *
v
v
Volume
Feature
HFAI
Mute
Speaker
Transfer
Conf
Drop
Hold
Handset Display Screen
Fixed-Display Buttons (4)
Button Labeling Cards
Line Buttons (28)
Message Light
Dialpad
Volume Control
Fixed-Feature Buttons (8)
User Cards and Tray
Unlabeled Display Buttons (4)
