Repair Information 4-27
4227-X00
Paper Select Lever Removal
1. Remove the top cover.
See “Top Cover Removal” on page 4-6 .
2. Release the latch and then remove the paper select lever from
the right side frame.
Paper Select Sensor Removal
1. Remove the top cover.
See “Top Cover Removal” on page 4-6 .
2. Remove the print unit.
See “Print Unit Removal” on page 4-30 .

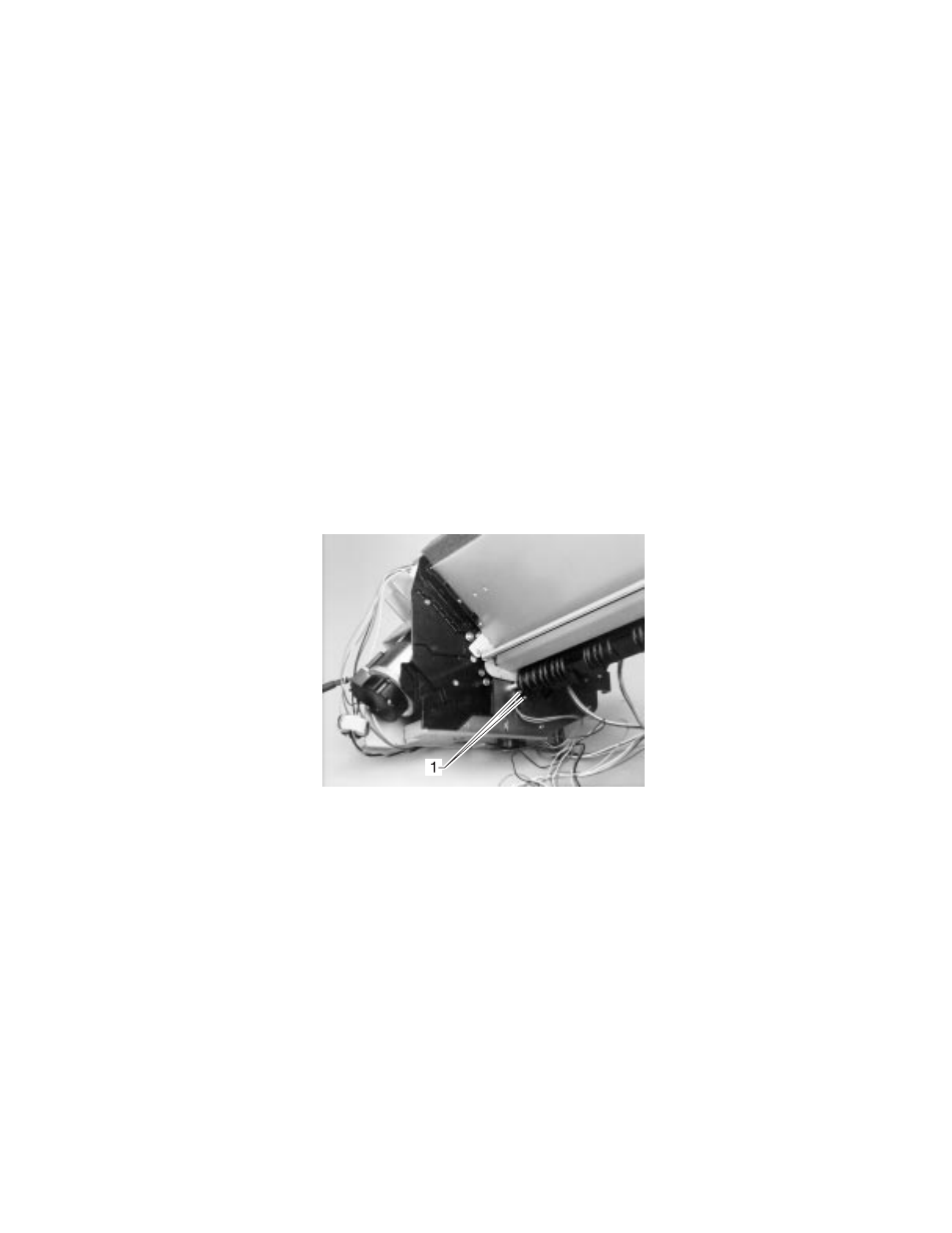

3. Use a #1 Phillips screwdriver to remove the two screws [1]
holding the paper select sensor to the left side frame.
