Lower Pinch Roller Removal
1. Remove the ribbon cover and the ribbon.

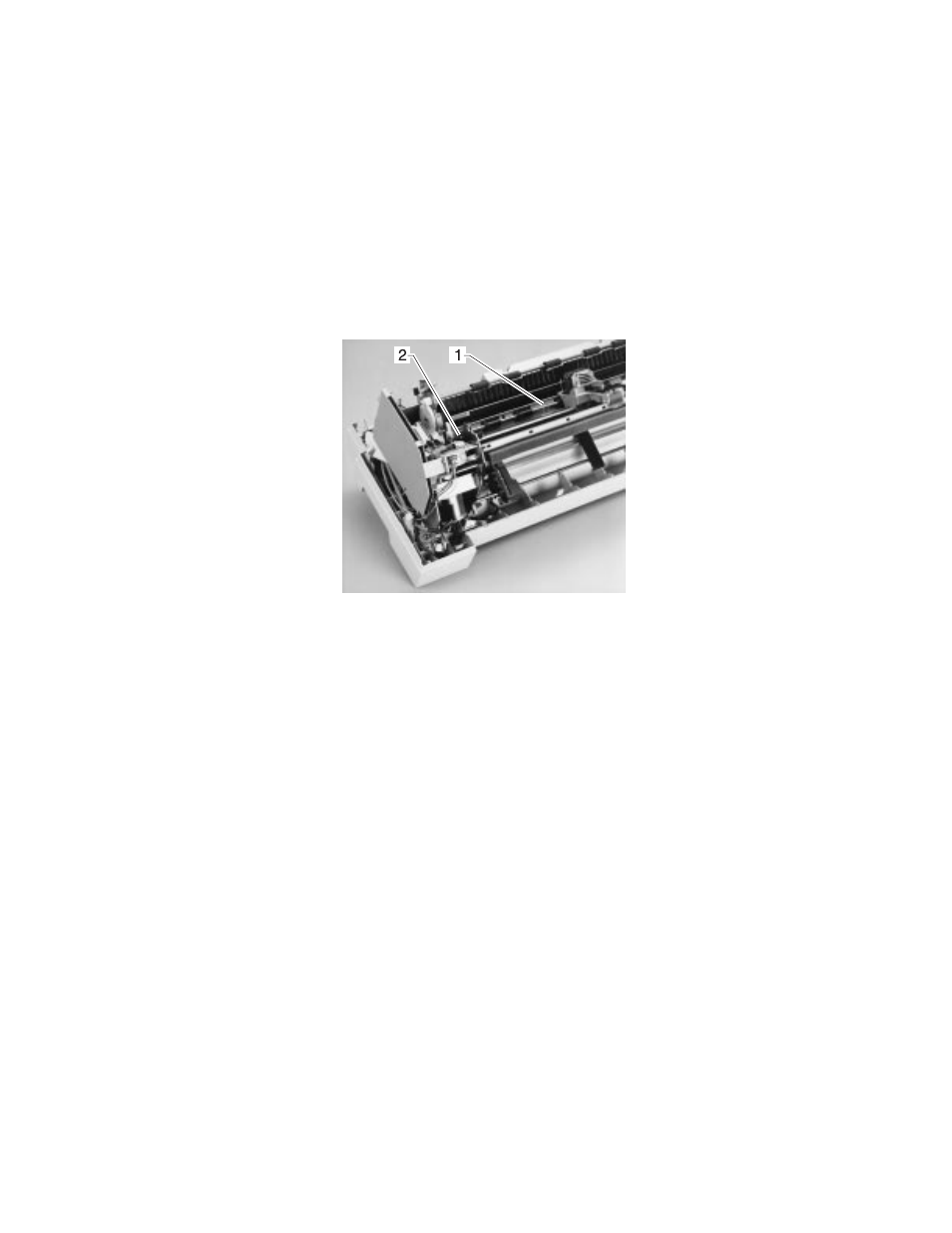

2. Remove the U-shaped ground spring [1].
3. Release the left and right pinch roller springs [2].
4. Move the carrier to the right as far as it will go.
5. Lift the left end of the lower pinch roller and move it to the left
until the right end clears the carrier. Be sure not to lose the right
bearing.
6. Remove the shaft to the right.
