Page 71
4-8
Service Manual
4227-X00
Auto Gap Motor
1. Remove the top cover.
See
“Top Cover Removal” on page 4-6
.
2. Disconnect gap adjust motor connector CN20 from the main
logic board.
3. Remove the sub logic card.
4. Remove the paper feed motor.

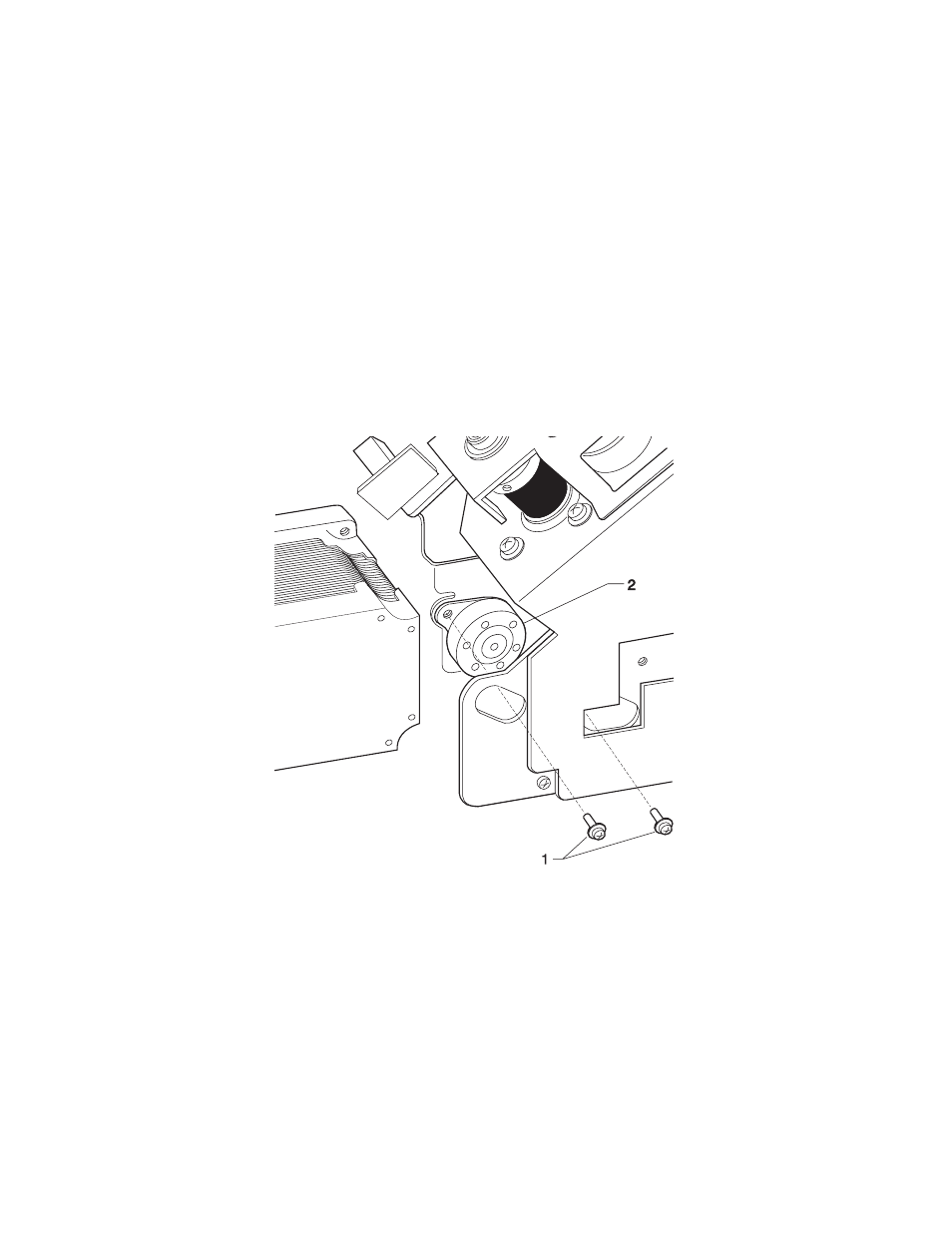

5. Remove the two gap adjust motor screws [1] through the access
holes in the carrier motor mounting bracket and remove the
motor [2].
