On-Screen Display
Setting Up the OSD
Panasonic Semiconductor Development Company
MN102H75K/F75K/85K/F85K LSI User Manual
182
Panasonic

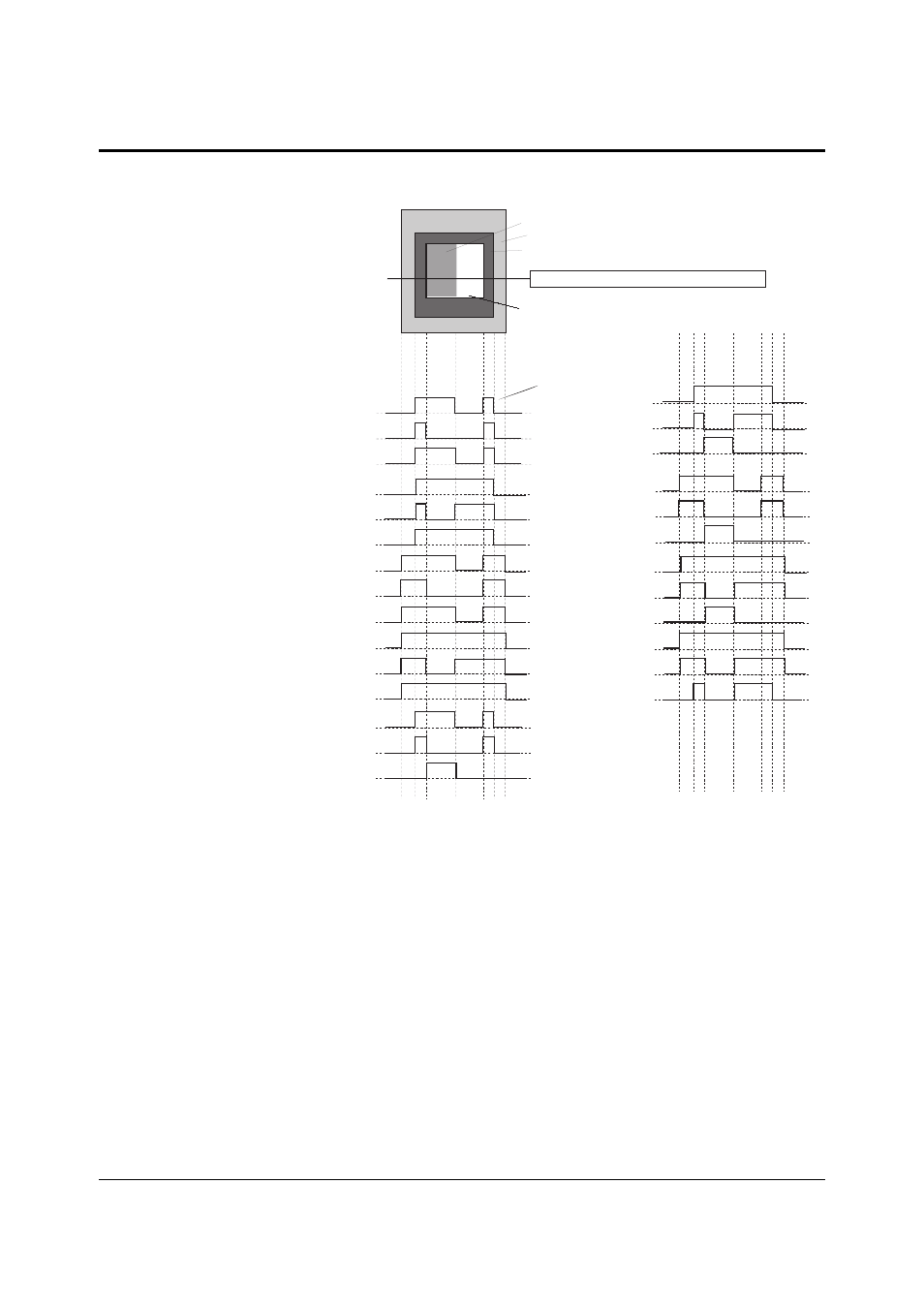

Figure 7-21 OSD Signal Waveform
TV
Graphics layer
Color palette 1 (YM3 = 1, YM2 = 0, YM1 = 0, YM0 = 1)
Color palette 0 (YM3 = 0, YM2 = 0, YM1 = 0, YM0 = 1)
Color palette 2 (YM3 = 0, YM2 = 0, YM1 = 0, YM0 = 0)
Color palette F (YM3 = 1, YM2 = 0, YM1 = 0, YM0 = 1)
RGB
YS
YM
2
F
0 1
1 0
Signal specified in
color palette 0 is output.
RGB
YS
YM
RGB
YS
YM
RGB
YS
YM
RGB
YS
YM
RGB
YS
YM
2
F
0 1
1 0
➀
➇
➆
➅
➄
➃
➂
➁
RGB
YS
YM
2
F
0 1
1 0
RGB
YS
YM
RGB
YS
YM
2
F
0 1
1 0
➈
RGB, YM, and YS signals are displayed at this line.
