MAINTENANCE WORK ON CHASSIS AND ENGINE
91
100259-10

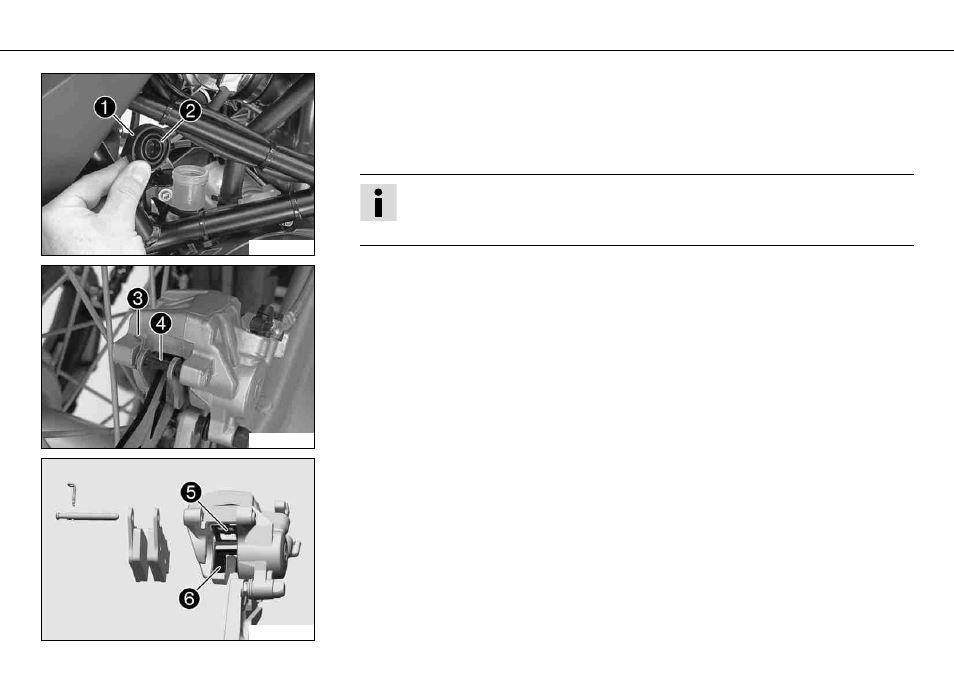

– Stand the vehicle upright.
– Remove screw cover
 with membrane  .
– Press the brake caliper by hand on to the brake disc in order to press back the brake
piston. Ensure that brake fluid does not overflow from the brake fluid reservoir and suc-
tion it off if necessary.
Info
Make sure when pushing back the brake piston that you do not press the brake
caliper against the spokes.
100288-10
– Remove split pin  , remove bolt  toward the left by striking it and remove the brake
linings.
– Clean brake caliper and brake caliper support.
– Check parts for damage and wear. Replace damaged or worn parts.
400419-10
– Check that leaf spring  in the brake caliper and sliding plate  in the brake caliper
support are seated correctly.
