MAINTENANCE WORK ON CHASSIS AND ENGINE
67
9.16

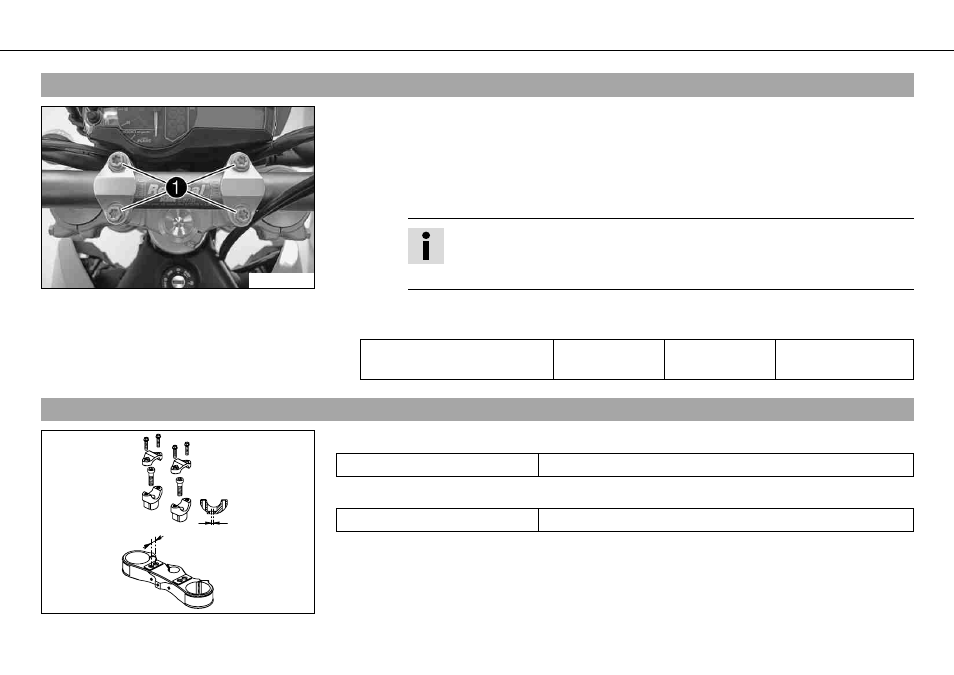

Adjusting the handlebar angle x
100279-10
– Loosen screw  .
– Move the handlebar to the desired position and slightly tichten the screws.
– Move the handlebar carefully in both directions as far as it will go.
» If the handlebar instruments touch the fuel tank:
– Correct the handlebar angle.
Info
The distance between the handlebar support and the handlebar clamp
must be the same at the front and rear.
– Fully tighten screw  .
Specification
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft) Loctite ® 243™
9.17
Handlebar position
400271-11
On the upper triple clamp, there are 2 holes at a distance  to each other.
Distance  between holes 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance  from the center.
Distance  between holes 3.5 mm (0.138 in)
The handlebar can be mounted in 4 different positions. In this way, the handlebar can be
installed in the position most comfortable for the rider.
