MAINTENANCE WORK ON CHASSIS AND ENGINE
60
100245-10

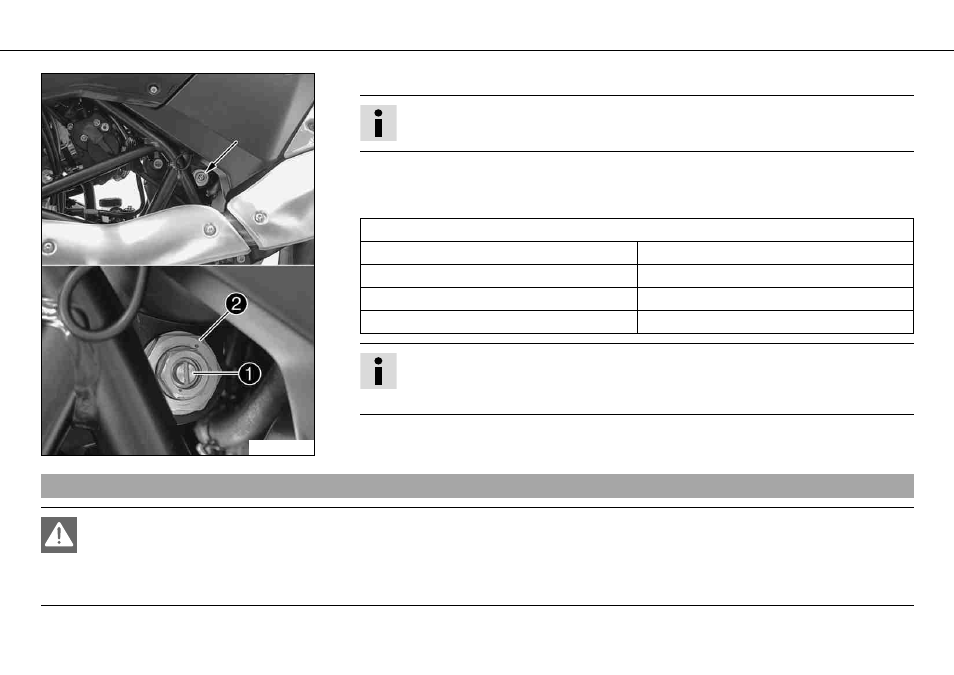

– Turn the adjusting screw  clockwise with a screwdriver until it stops.
Info
Do not loosen nut  !
– Turn back counterclockwise the number of clicks corresponding to the shock absorber
type.
Specification
Compression damping, low-speed
Comfort 20 clicks
Standard 15 clicks
Sport 10 clicks
full payload 10 clicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
9.8
Adjusting high-speed compression damping of the shock absorber
Danger
Danger of accidents The shock absorber is under high pressure.
– The shock absorber is filled with highly compressed nitrogen, so never dismantle the shock absorber or carry out any mainte-
nance on it yourself.
