MAINTENANCE WORK ON CHASSIS AND ENGINE
71
100249-10
– Lean the motorcycle on the side stand.
– Shift gear to neutral.

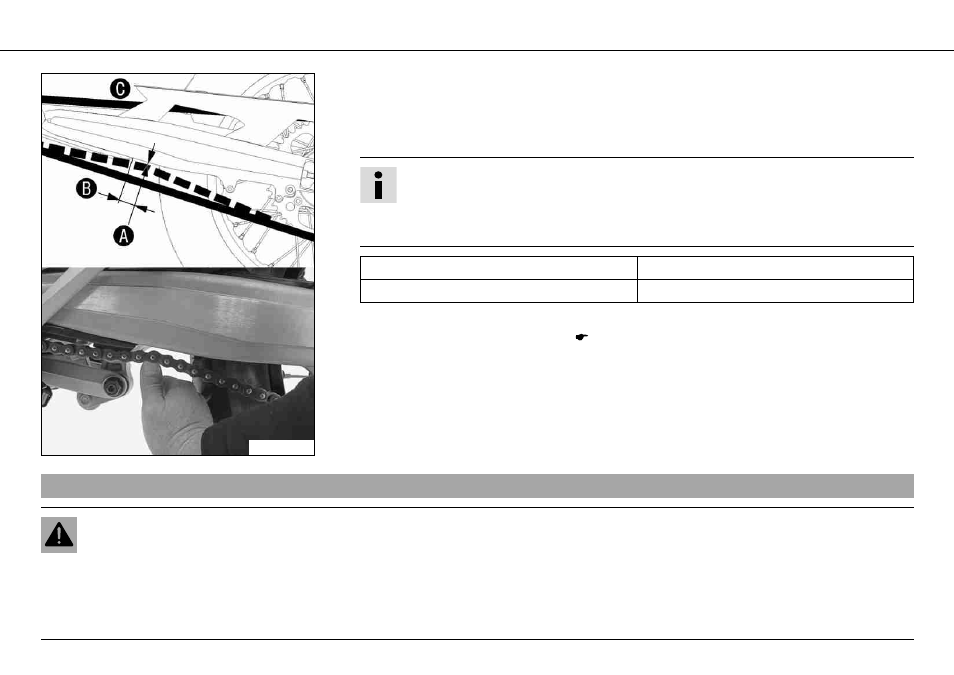

– Push the chain upward at a distance
 from the chain sliding guard and determine the
chain tension  .
Info
The upper chain section  must be taut.
Chain wear is not always even, so you should repeat this measurement at differ-
ent chain positions.
Chain tension 5 mm (0.2 in)
Distance to chain sliding guard 30 mm (1.18 in)
» If the chain tension does not meet specifications:
– Adjust the chain tension. ( P. 71)
9.22
Adjusting chain tension
Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain tension is too high, the components of the secondary power train (chain, engine sprocket, rear sprocket, bearings
in transmission and rear wheel) are under additional load. Apart from premature wear, in extreme cases the chain can rupture
or the countershaft of the transmission can break. On the other hand, if the chain is loose, it can fall off the engine sprocket or
the rear sprocket and block the rear wheel or damage the engine. Check for correct chain tension and adjust if necessary.
