MAINTENANCE WORK ON CHASSIS AND ENGINE
110
600606-10

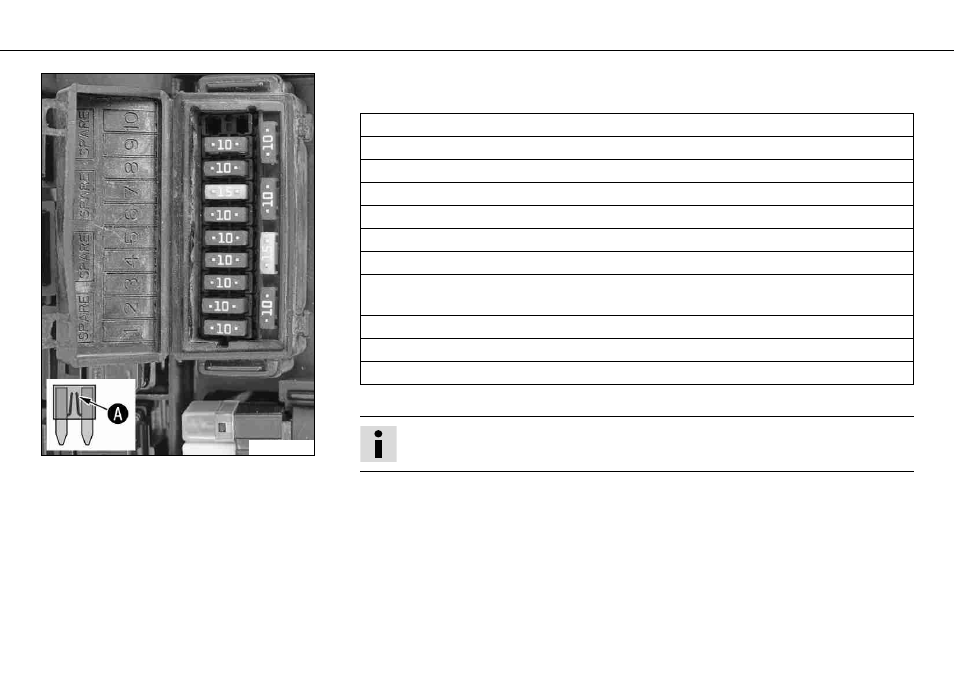

– Remove defective fuse.
Specification
Fuse
1 - 10A - ignition, combination instrument, alarm system (optional)
Fuse
2 - 10A - clock, ignition (EFI control unit)
Fuse
3 - 10A - throttle valve control unit
Fuse
4 - 10A - fuel pump
Fuse
5 - 10A - radiator fan
Fuse
6 - 10A - horn, brake light, flasher light, alarm system (optional)
Fuse
7 - 15A - high beam, low beam, parking light, tail light, license plate lamp
Fuse
8 - 10A - for supplementary equipment (accessories connected with ignition
switch)
Fuse
9 - 10A - for supplementary equipment (standard accessories)
Fuse
10 - not used
Fuse
SPARE - 10A/15A - spare fuses
– Check parts for damage and wear. Replace damaged or worn parts.
Info
A defective fuse is shown by a burned-out fuse wire
.
