MAINTENANCE WORK ON CHASSIS AND ENGINE
86
100257-10

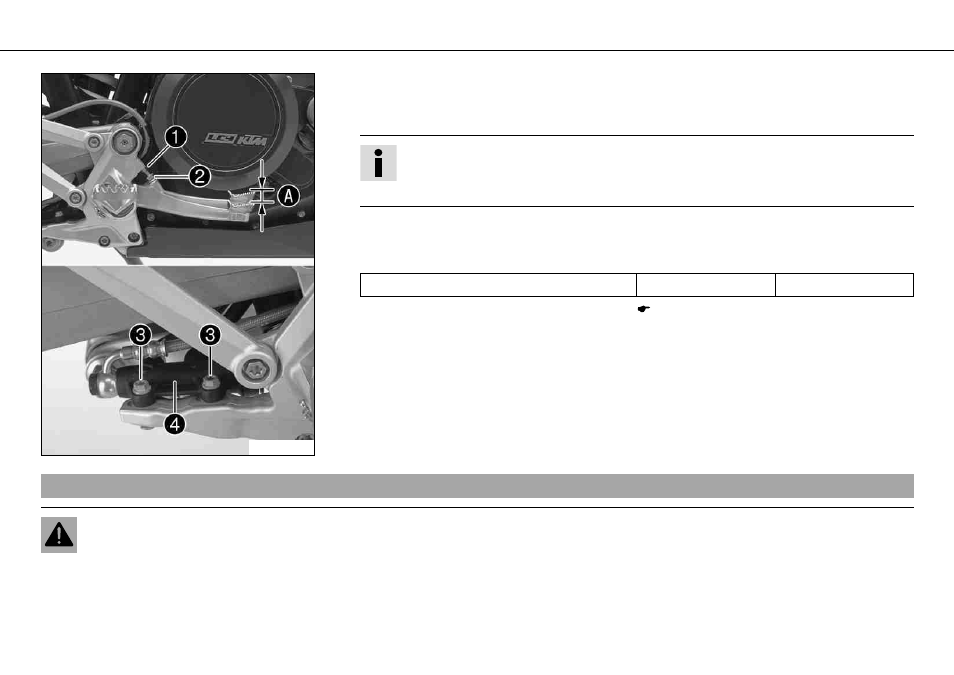

– Remove screw connection  on foot brake cylinder  .
– To adjust the basic position of the foot brake pedal as needed, loosen nut
 and turn
screw  accordingly.
Info
The range of adjustment is limited. The screw must be screwed into the footrest
bracket by at least four turns.
– Position foot brake cylinder  so that the foot brake pedal has the necessary free travel.
Hold screws  in place and tighten the nuts.
Specification
Nut, foot brake cylinder screw M6 10 Nm (7.4 lbf ft)
– Check the free play of the foot brake lever. ( P. 85)
– Tighten nut  .
9.36
Checking rear brake fluid level
Warning
Danger of accidents Brake system failure.
– MINIf the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Have the brake system checked in an authorized KTM workshop, and do not ride any further.
