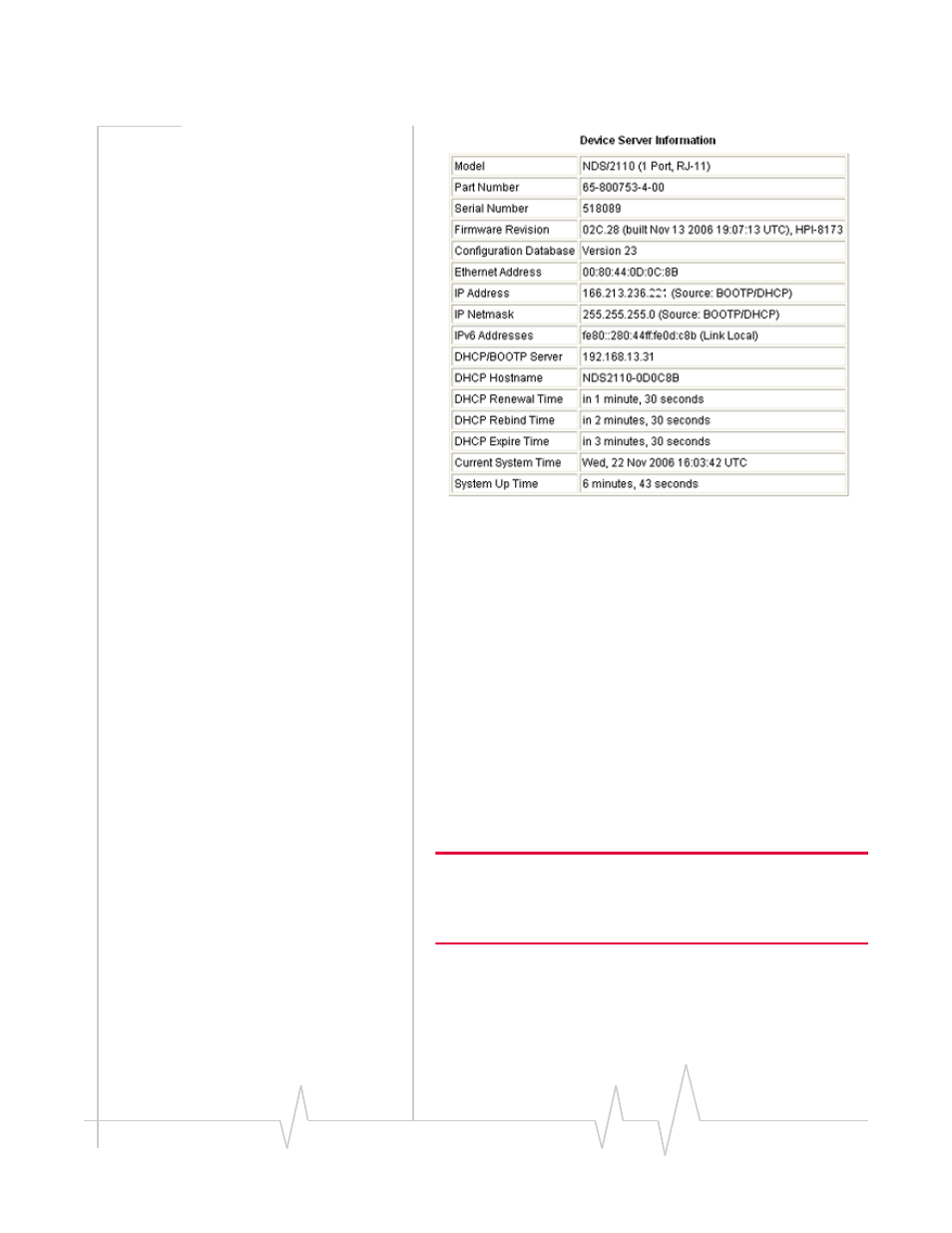

Figure 2-3: RJ-11 IP Gateway: Welcome - Device Server Information
•
Ethernet Address : MAC Address of the RJ‐11 IP
Gateway.
•
IP Address : The current IP Address of the RJ‐11 IP
Gateway and how the IP address was assigned (in the
example, a Raven‐E in Public Mode used DHCP to give the
RJ‐11 IP Gateway the IP addressed assigned by the cellular
network).
•
IP Netmask : The current subnetmask of the RJ‐11 IP
Gateway and how the device obtained it.
Serial Settings
•
The Serial Settings page allows you to specify the baud
rate, protocol, character size, parity, stop bits, and flow
control behavior for the RJ‐11 port (Phone).
Note: For most configurations, the default settings (shown in the
screen shots) are best. Change these parameters only if you know the
device you will be connecting to the RJ-11 IP Gateway requires
special settings.
