Configuring the IP Address and Interface
Port of the RJ-11
RJ-11 IP Gateway
Defaults
• Phone port: 78 data bits, even no parity, and 1 stop bit
(7E18N1).
• Protocol: American/Bell 212A.
• Maximum baud: 2400.
• DHCP client: enabled disabled.
If you are using the defaults for the RJ-11 IP Gateway, you can skip
this section and connect your RJ-11 IP Gateway directly to your Raven
X and device and network.
Configuring the RJ-11 IP Gateway
1. The IP Address configuration is how the RJ‐11 IP Gateway
will communicate with the Raven X. Connect the RJ‐11 IP
Gateway to power and connect the Ethernet cable from
your Raven X computer to the RJ‐11 IP Gateway.
Caution: If the modem has been disconnected from power between
the steps of the previous section and this section, it may have a
different IP address than what you noted. You will need to reconnect
the modem to your computer, reconnect Wireless Ace and repeat step
5 above (page 7) to determine the new IP address given to the
modem by the cellular provider
2. Open your web browser and use the IP address from step
5 above as the web address. Type “http://”, the IP address
from the modem, and “192.168.1.3:9080” (see the example
in the screenshot below) in the Address or Location bar
and press the enter key.

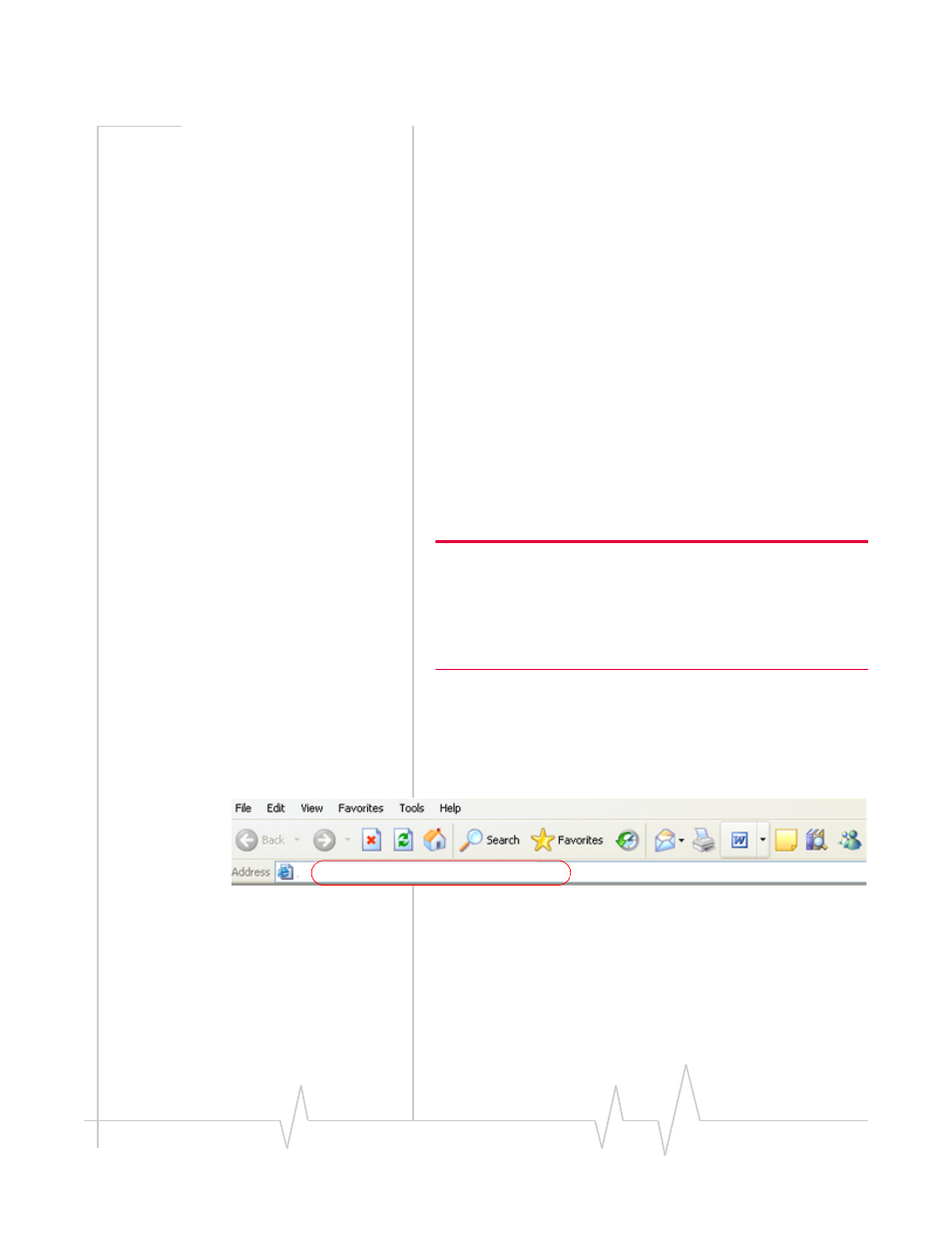

Figure 2-5: Web Browser : Enter the Location
http://166.213.236.221:9080
