Adjustments
57
70256801
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

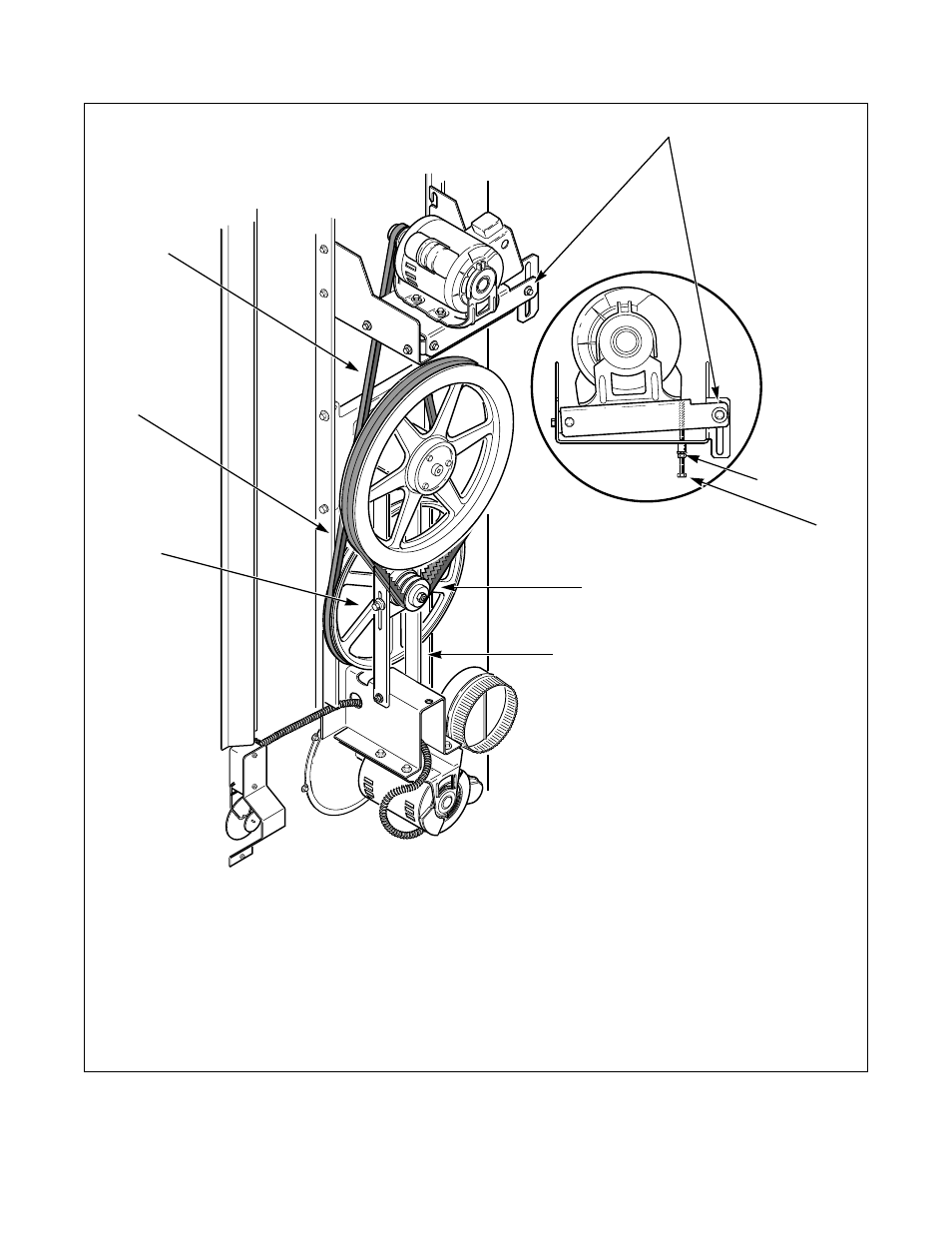

Figure 26
T322I
1
Locking Bolt
2
Adjusting Nut
3
Adjusting Screw
4
Cylinder Belts
5
Guide Rail
6
Idler Housing Bolts (2)
7
Adjusting Bolt (Not shown)
8
Drive Belt
T322I
REVERSING MODELS
2
3
4
1
8
7
6
5
